 Hogar  Productos  Bombas jockey verticales multietapa

PV

PV bomba centrífuga vertical multietapa

• Nueva bomba centrífuga vertical multifásica
• Diseño puramente original
• Tanto el motor cuadrado como el circular están disponibles
• motor de alta eficiencia ye3, clase de protección ip55 F
• carcasa de la bomba con recubrimiento anticorrosivo
• impulsor en tecno - polimer
• Eje de acero inoxidable Aisi 304 o hierro galvanizado
• succión y descarga de hilos de hierro fundido G20
Rodamientos NSK de alta calidad, sellos mecánicos resistentes al desgaste

3D PRODUCT CHAT NOW

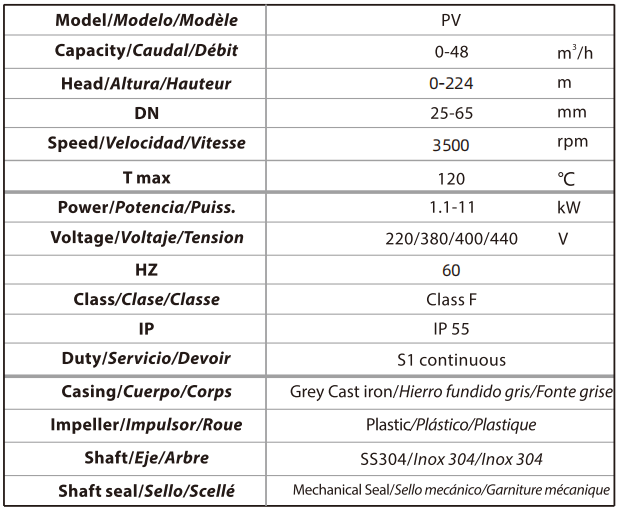

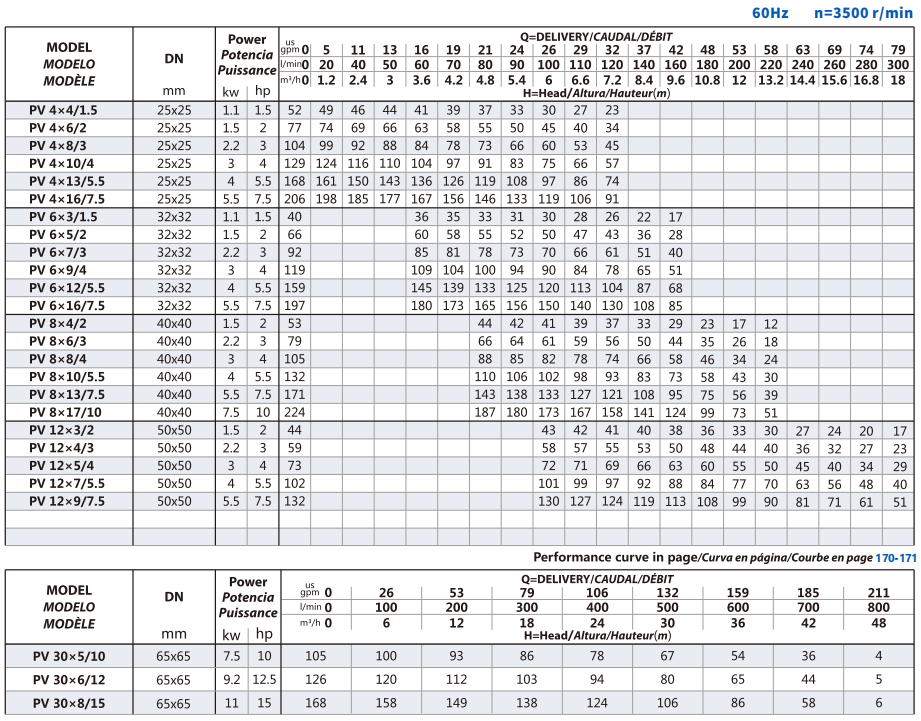

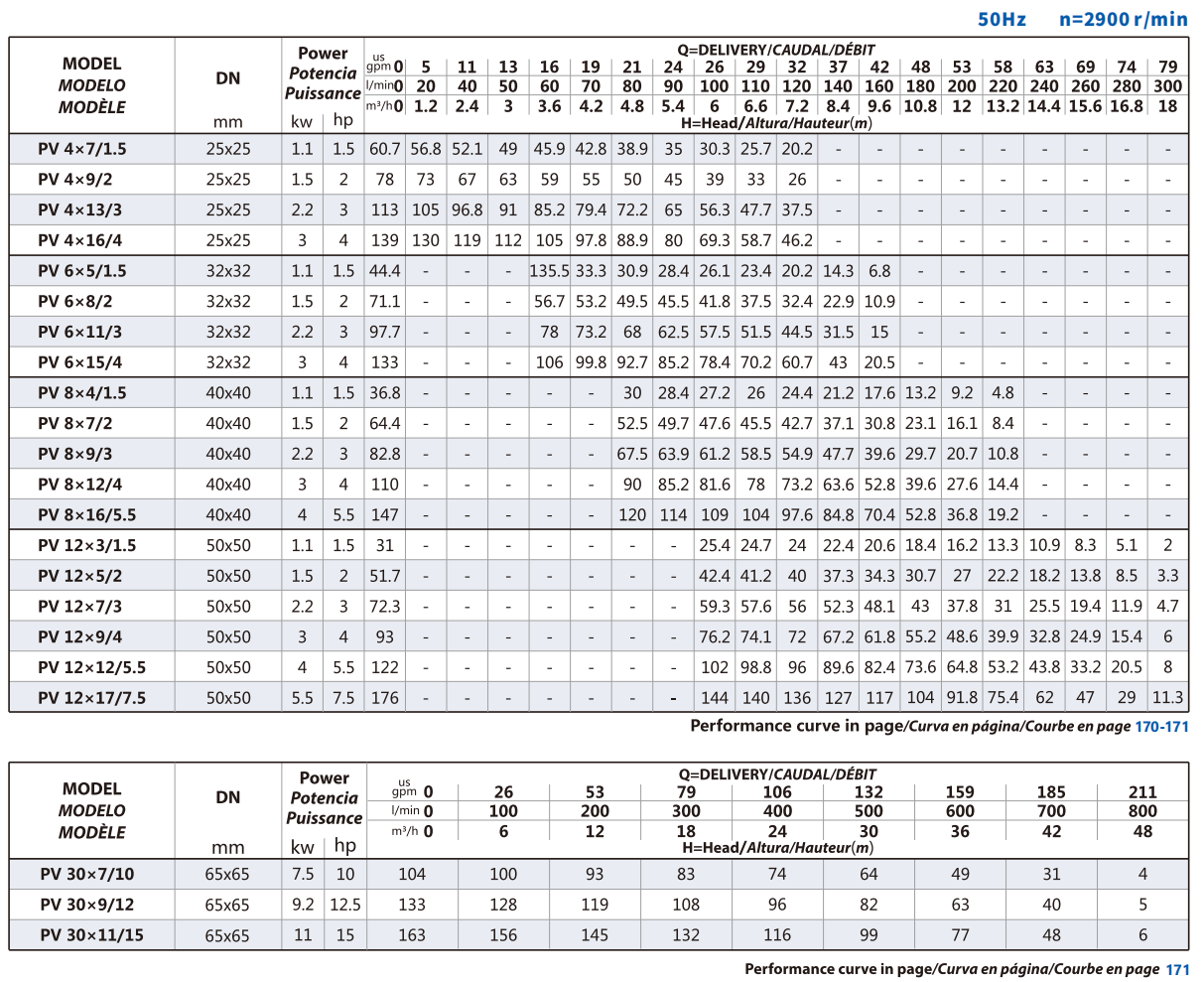

Product Specification (50HZ) 60HZ

Related Products

Please send inquiry to exp@cnpurity.com for prompt reply !

Product Description

PV Vertical Multistage Centrifugal Pump

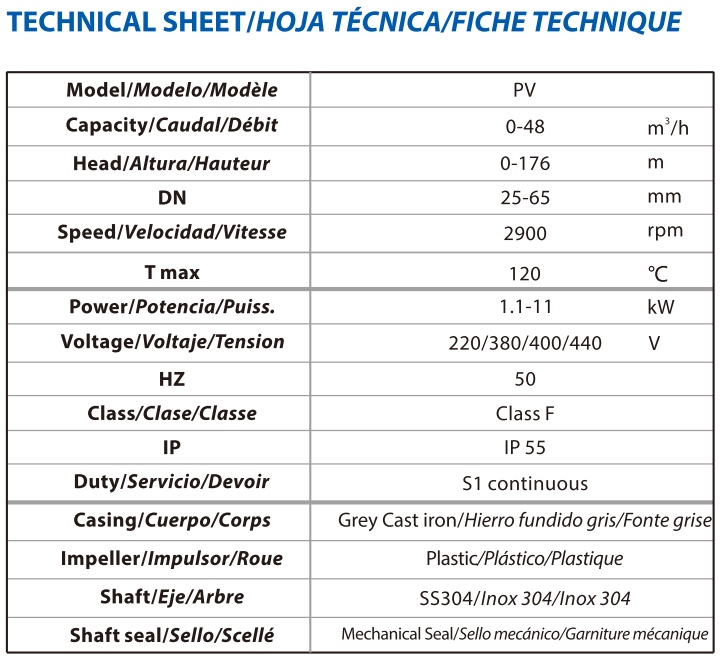

TECHNICAL DESCRIPTION
New vertical multistage centrifugal pump
Original design by PURITY
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in techno-polimer
Shaft in stainless steel AISI 304 or galvanized iron
Suction and discharge port in cast iron G20 thread
Quality NSK bearing, wear resistance mechanical seal
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The high efficiency and adaptability of these pumps to even the most
unusual of applications, makes them ideal for use in the domestic,
civil and industrial sectors; in particular for the distribution of water
in combination with pressure sets and for pressure boosting.
USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 25 bar
Continuous service S1
