[PC] Bomba horizontal centrífuga de puerto roscado de PURITY

الوصف الفني
· مضخة طرد مركزي جديدة لمنفذ الخيط
· التصميم الأصلي من PURITY (حاصل على براءة اختراع)
· يتوفر كل من المحرك المربع والمحرك الدائري
· محرك YE3 عالي الكفاءة ، مع حماية IP55 فئة F.
· علبة المضخة بطلاء مضاد للتآكل
· المكره من النحاس الأصفر أو الحديد الزهر
· عمود الدوران من الفولاذ المقاوم للصدأ AISI 304 أو الحديد المجلفن
· منفذ الشفط والتفريغ في خيط G20
· جودة تحمل NSK ، ختم الميكانيكية مقاومة التآكل
3D PRODUCT CHAT NOW

Product Description


TECHNICAL DESCRIPTION

New thread port centrifugal pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in brass or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Suction and discharge port in G20 thread
Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS
The high efficiency and continuous duty capabilities makes these pumps
ideal for use in activities such as flood and spray irrigation,
drawing water from lakes, rivers and wells,
or for any number of different industrial applications where the
characteristics of high flow rates and mid to low head are required.
Suitable for use in civil and agricultural applications.

USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1

PATENTS
Registered model PC

Registered Patent Design n° 201530476290.2

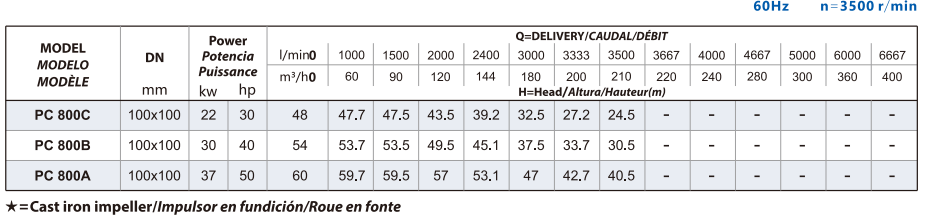

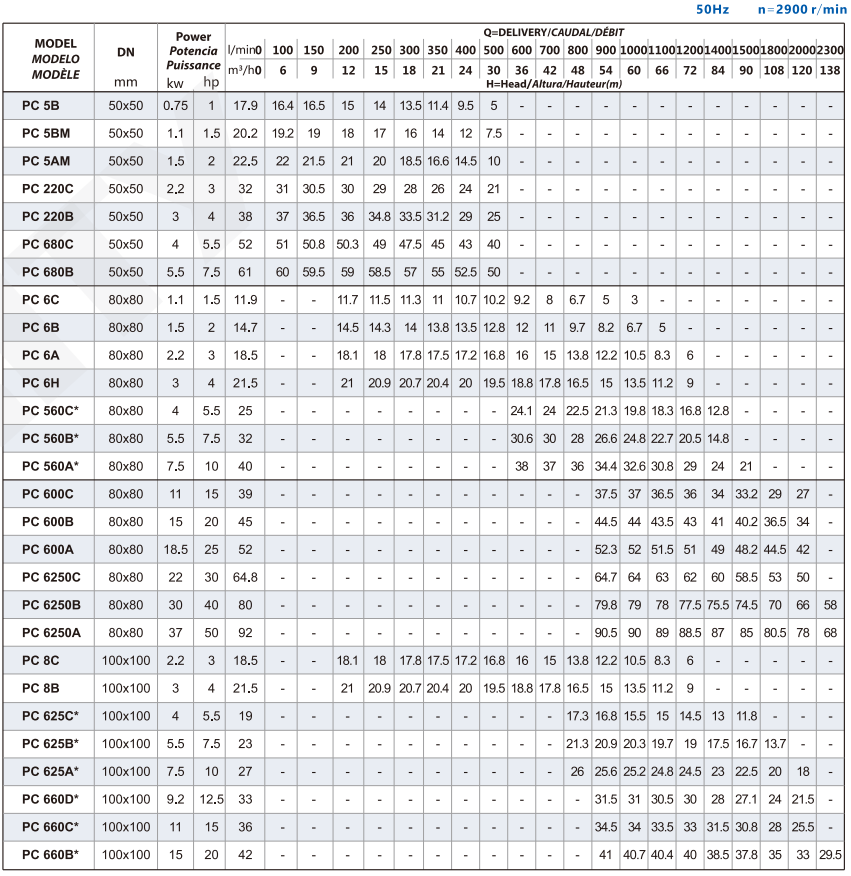

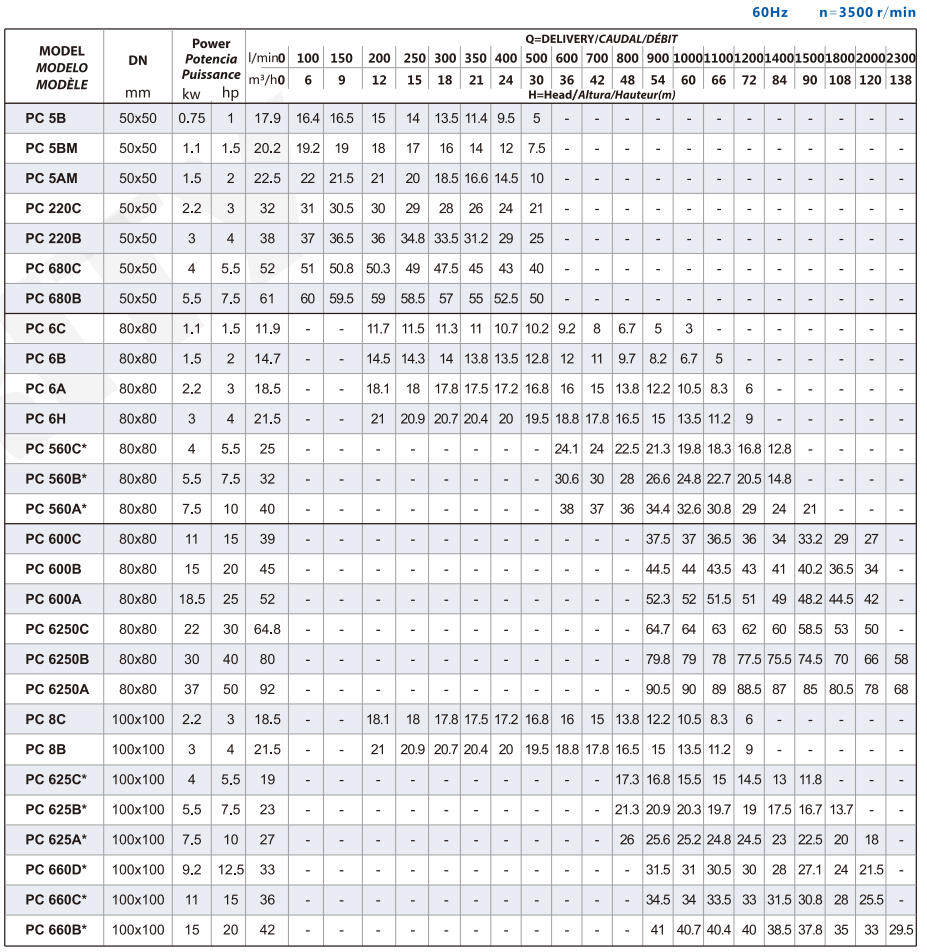

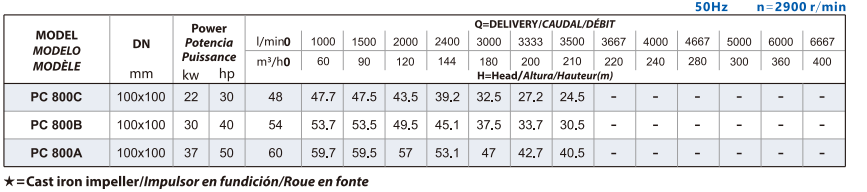

TECHNICAL DATA


Contact Us


Please send inquiry to mina@purityfire.com for prompt reply !

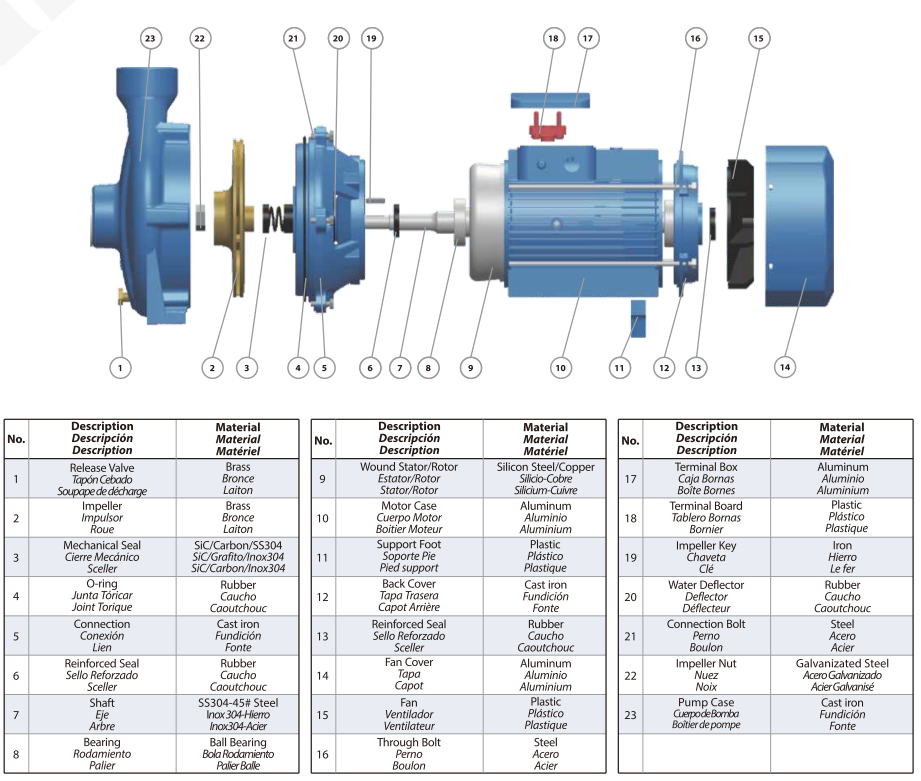

MATERIAL DESCRIPTION


No.

Description

Material

No.

Description

Material

No.

Description

Material

1

Release Valve

Brass

9

Wound Stator/Rotor

Silicon Steel/Copper

17

Terminal Box

Aluminum

2

Impeller

Brass

10

Motor Case

Aluminum

18

Terminal Board

Plastic

3

Mechanical Seal

SiC/Carbon/SS304

11

Support Foot

Plastic

19

Impeller Key

Iron

4

O-ring

Rubber

12

Back Cover

Cast iron

20

Water Deflector

Rubber

5

Connection

Cast iron

13

Reinforced Seal

Rubber

21

Connection Bolt

Steel

6

Reinforced Seal

Rubber

14

Fan Cover

Aluminum

22

Impeller Nut

Galvanizated Steel

7

Shaft

SS304/45# Steel

15

Fan

Plastic

23

Pump Case

Cast iron

8

Bearing

Ball Bearing

16

Through Bolt

Steel


DIMENSIONS AND WEIGHT
