[PSCM] Bomba de carcasa dividida de voluta de succión doble horizontal

DESCRIPCIÓN TÉCNICA
· Nueva bomba de caja partida
· Diseño original de PURITY (patentado)
· Disponible completo con motor eléctrico o motor diesel
· Fácil extracción hacia atrás del conductor
· Carcasa de bomba con revestimiento anticorrosivo HT250
· Impulsor en acero inoxidable AISI 304 o HT250
· Eje en acero inoxidable AISI 304 o hierro galvanizado
· Rodamiento de calidad, sello mecánico / empaquetadura de prensaestopas
3D PRODUCT CHAT NOW


Product Description

















TECHNICAL DESCRIPTION



New split case pump

Original design by PURITY (patented)

Available complete with electric motor or diesel engine

Easily back pull-out from driver

Pump case with anti-corrosive coating HT250

Impeller in stainless steel AISI 304 or HT250

Shaft in stainless steel AISI 304 or galvanized iron

Quality bearing,mechanical seal/gland packing






APPLICATIONS

Suitable for use with clean water and liquids that are not chemically




aggressive towards the materials from which the pump is made.



The split case pumps are recommended for use in water supply,



cleaning sets, pressure boosting, firefighting sets, irrigation, industrial



applications, water circulation in climatisation sets, agricultural.





USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 25 bar

Continuous service S1

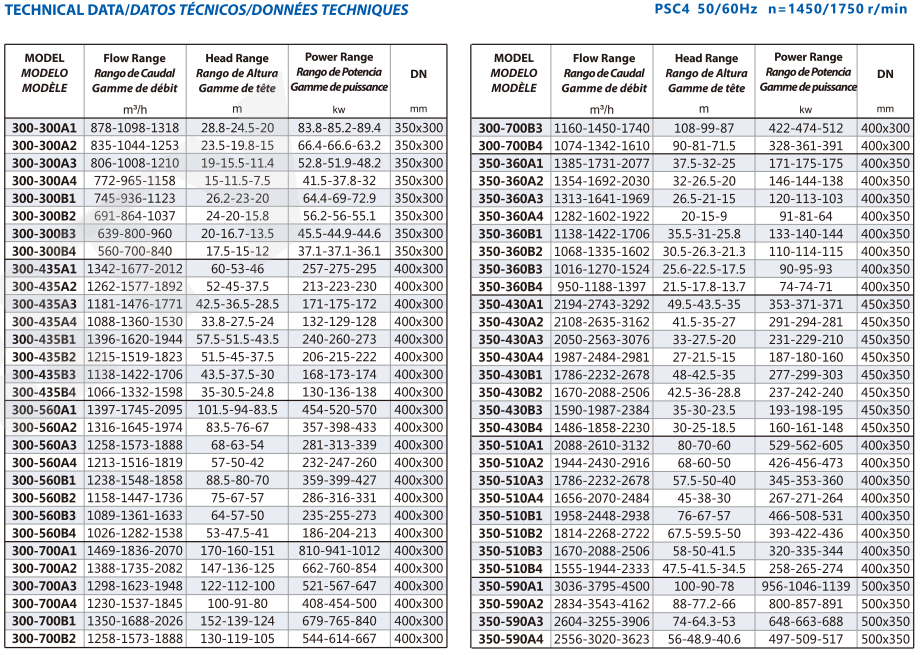

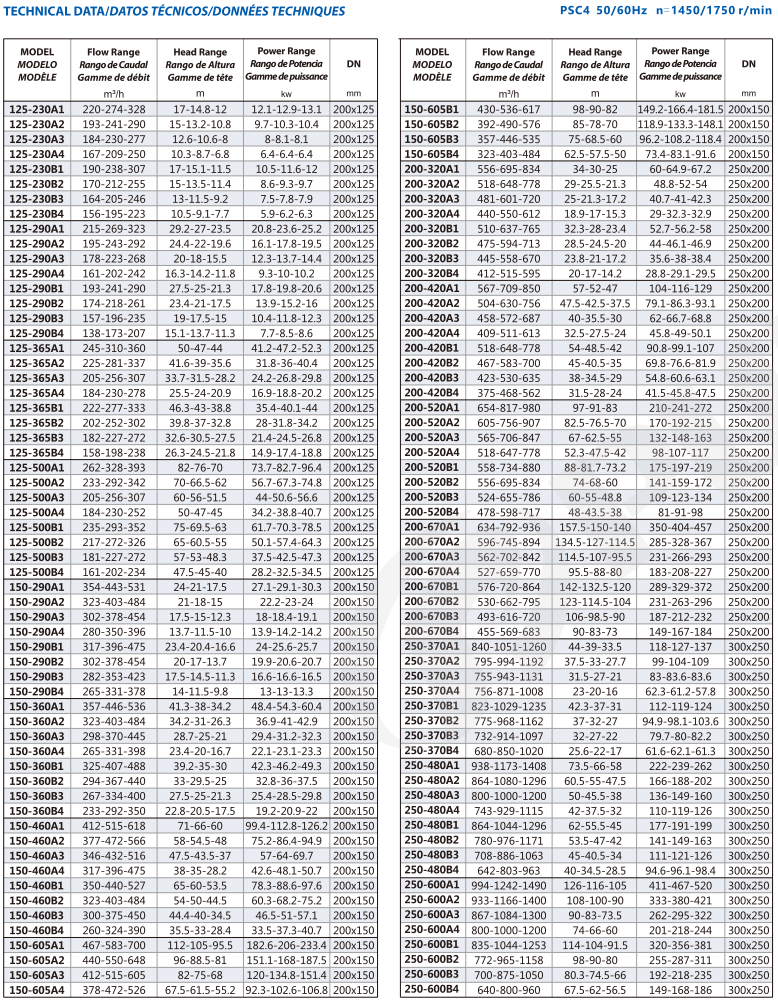

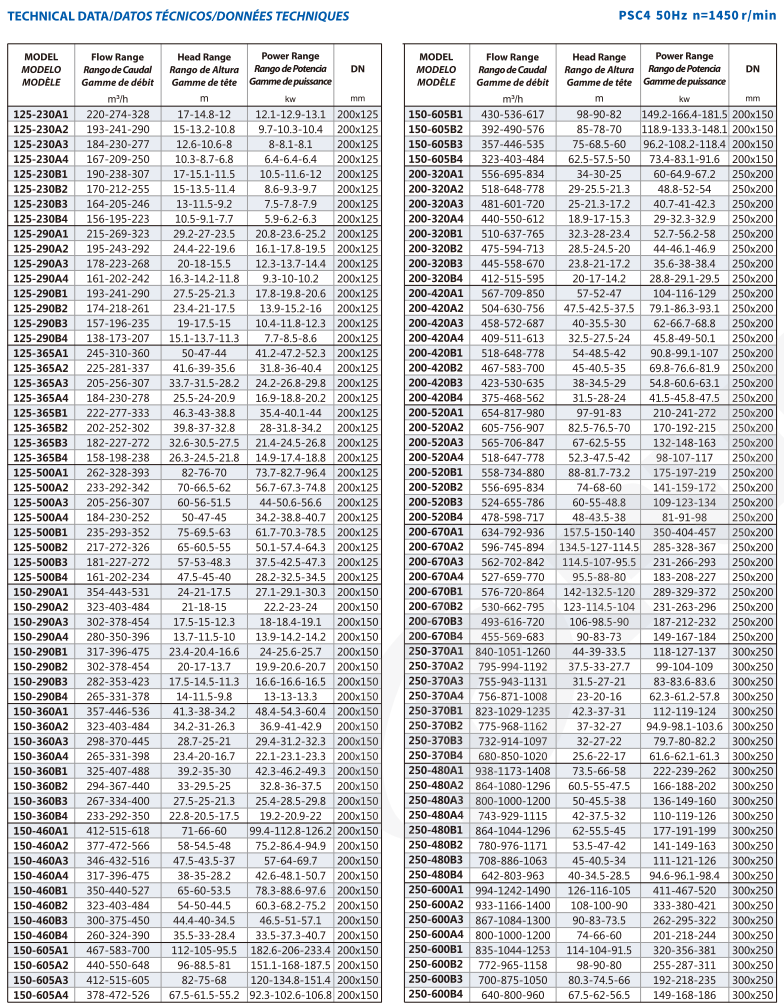

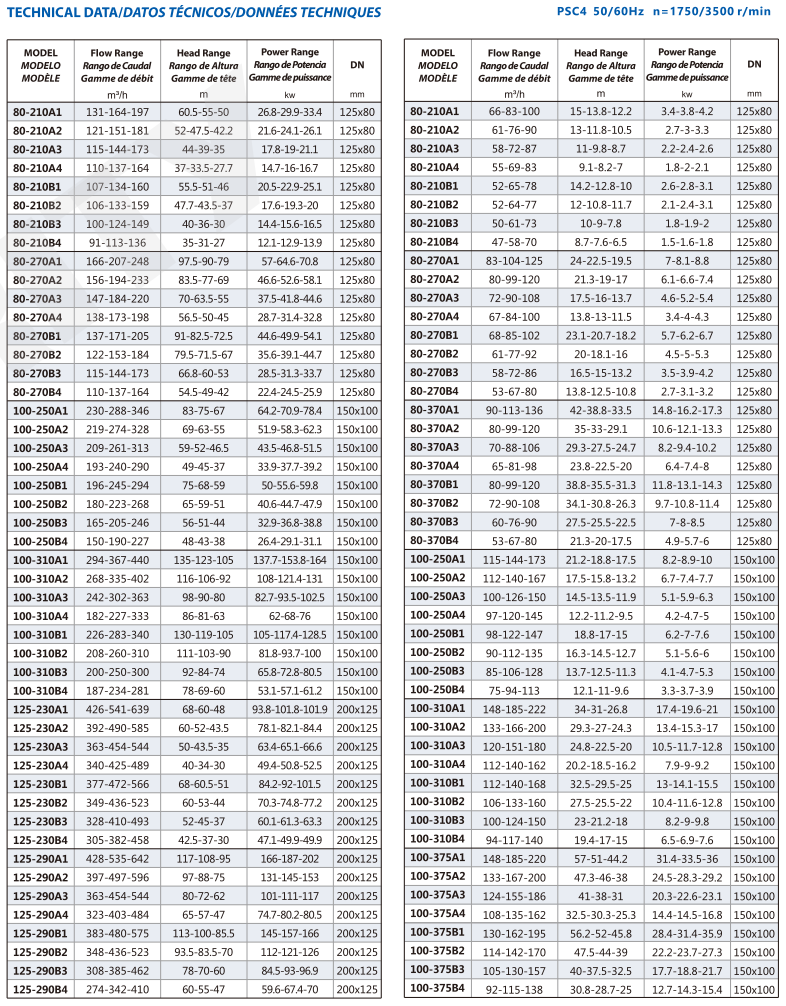

TECHNICAL DATA











Other Sizes  Can Provide On Request.

















Send an email mina@purityfire.com for more information !













MATERIAL DESCRIPTION
