[PSC] Fabricante de bombas centrífugas industriales horizontales Bomba de carcasa partida

DESCRIPCIÓN TÉCNICA
· Nueva bomba de caja partida
· Diseño original de PURITY (patentado)
· Disponible completo con motor eléctrico o motor diesel
· Fácil extracción hacia atrás del conductor
· Carcasa de bomba con revestimiento anticorrosivo HT250
· Impulsor en acero inoxidable AISI 304 o HT250
· Eje en acero inoxidable AISI 304 o hierro galvanizado
· Rodamiento de calidad, sello mecánico / empaquetadura de prensaestopas
3D PRODUCT CHAT NOW

Product Description



TECHNICAL DESCRIPTION

New split case pump
Original design by PURITY (patented)
Available complete with electric motor or diesel engine
Easily back pull-out from driver
Pump case with anti-corrosive coating HT250
Impeller in stainless steel AISI 304 or HT250
Shaft in stainless steel AISI 304 or galvanized iron
Quality bearing,mechanical seal/gland packing


APPLICATIONS
Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The split case pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.


USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 25 bar
Continuous service S1

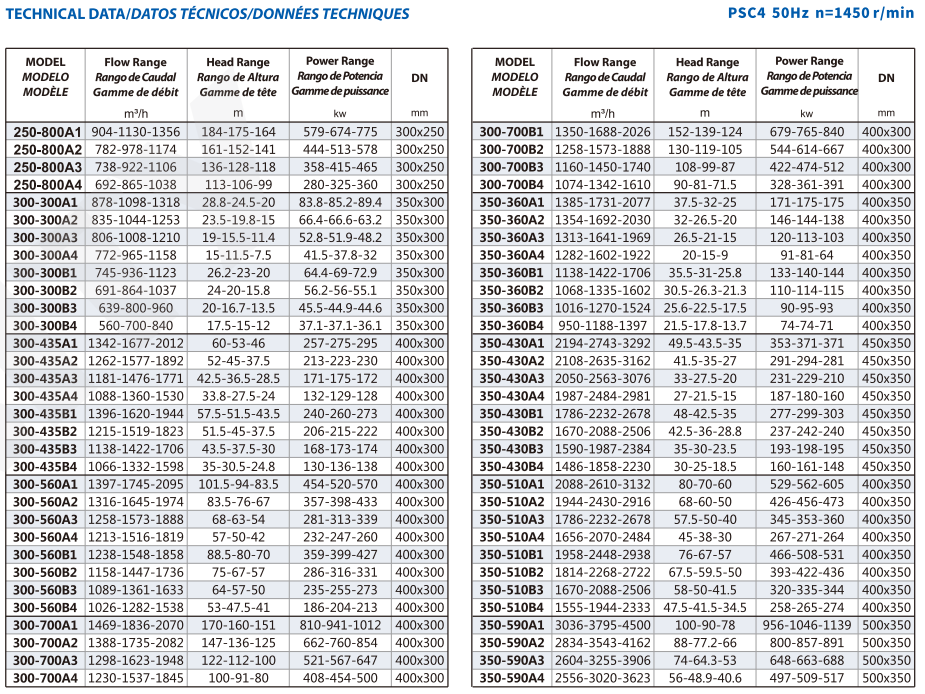

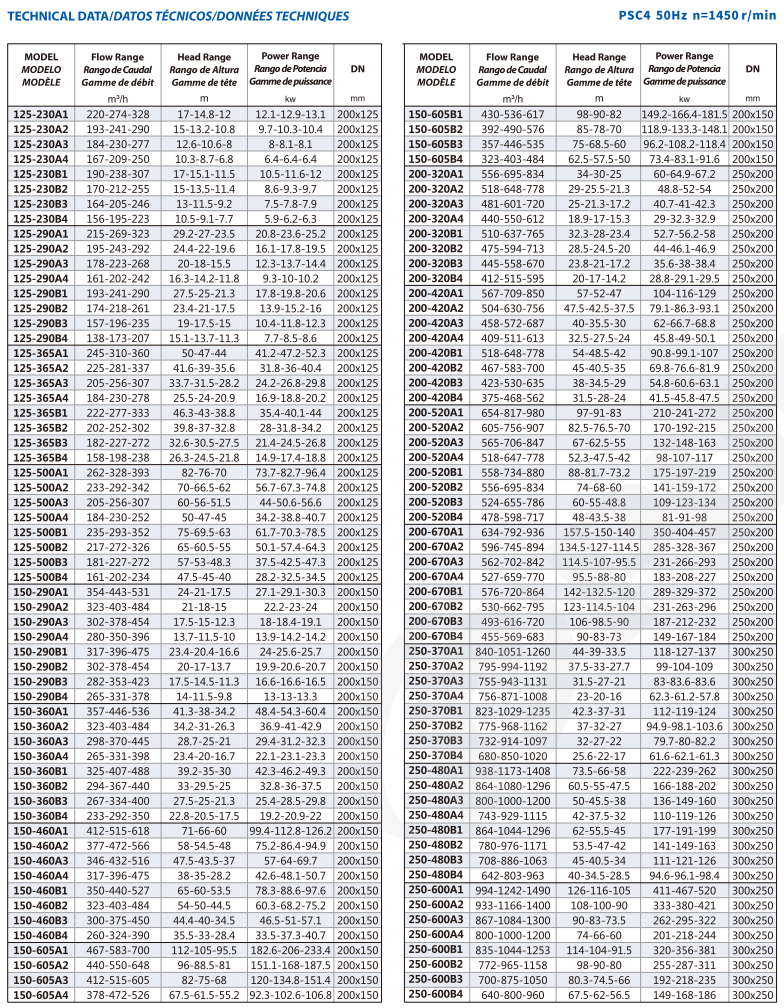

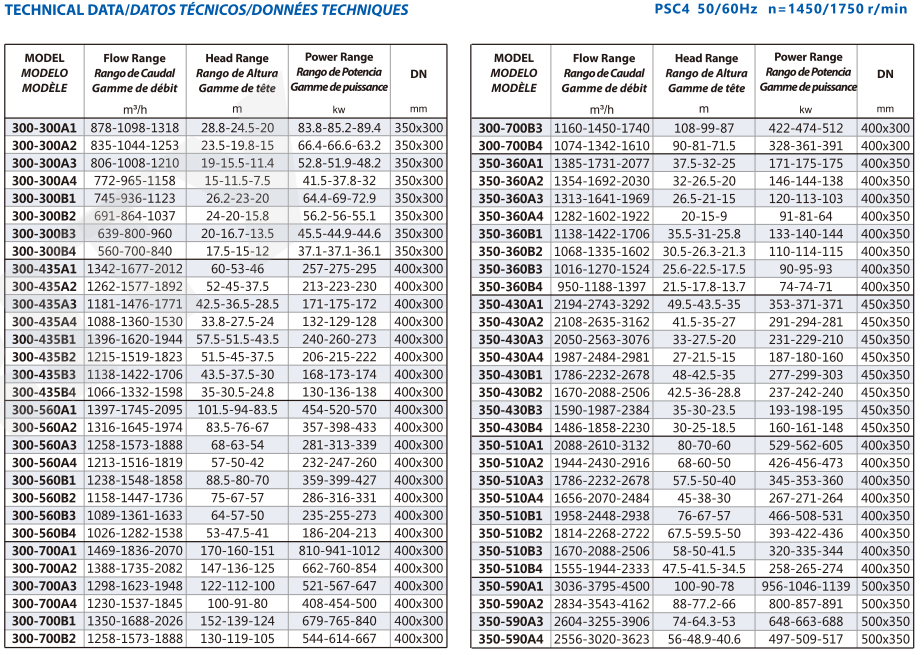

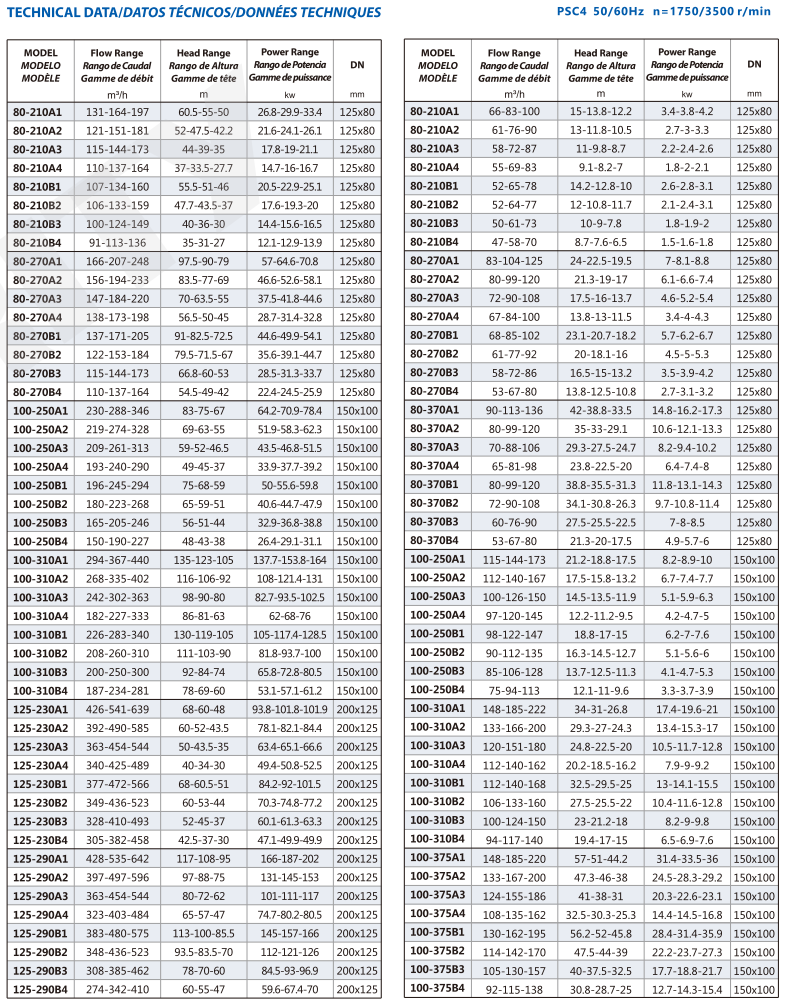

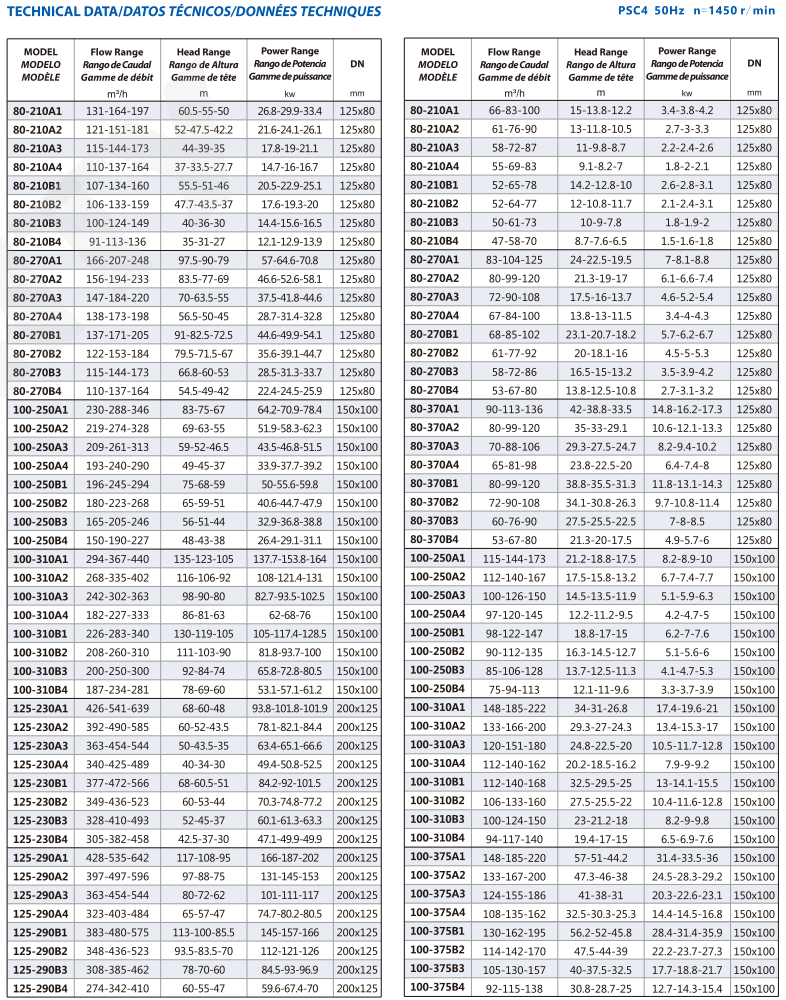

TECHNICAL DATA


Other Sizes  Can Provide On Request.

Send an email mina@purityfire.com for more information !


MATERIAL DESCRIPTION
