HogarVenta en caliente

PEDJ

Conjunto de bomba contra incendios con bomba eléctrica diésel y jockey

DESCRIPCIÓN TÉCNICA

* Flujo 50GPM - 5000GPM

* Altura / presión 5-17bar (50-170m)

* Cambiar automáticamente entre las tres bombas

* Tanto el funcionamiento manual como el automático están disponibles

* Puede funcionar cuando la energía está apagada

* Tamaño y grupo de bomba personalizados

* Motor YE3 de alta eficiencia con protección IP55 clase F

* Caja de bomba con revestimiento anticorrosivo

* Con rodamientos NSK, sello mecánico resistente al desgaste

* Diferentes estilos de montaje, fácil instalación

* Planta de fabricación ISO 9001
3D PRODUCT CHAT NOW

Related Products



Contact


Please send inquiry to exp@cnpurity.com for prompt reply !


Product Description


PEDJ Fire Pump System

(End Suction Electric Centrifugal Pump + End Suction Pump with Diesel Engine + Multistage Jockey Pump + Control Panel Box)

General Description for Fire Pump Set PEDJ

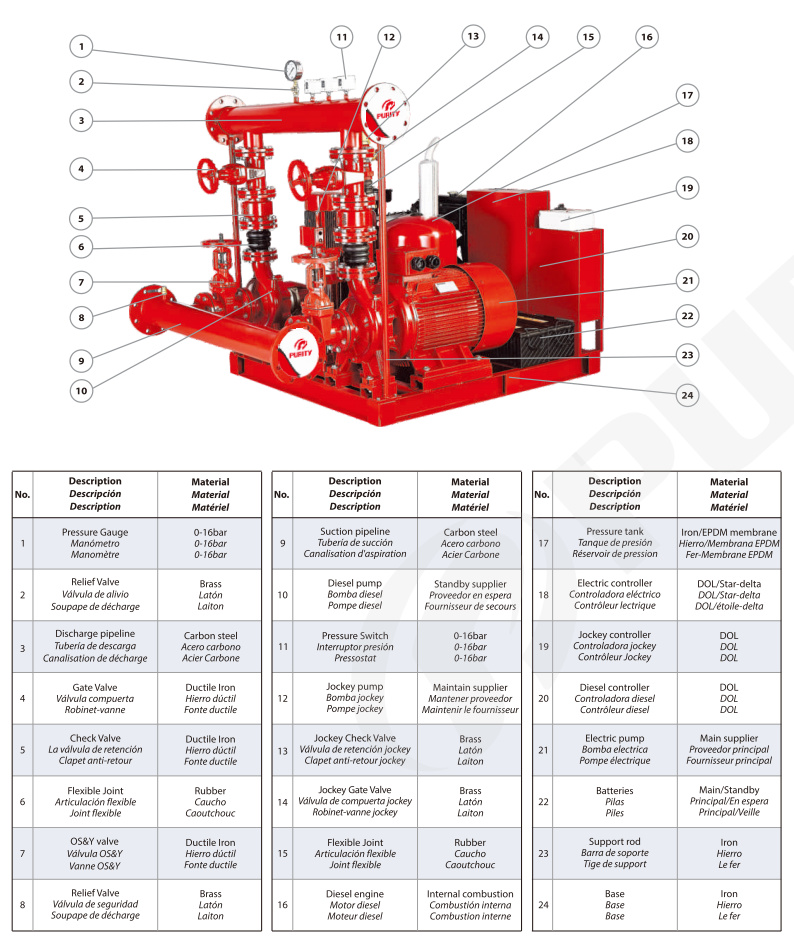

* PEDJ Fire Pump Set consists of End Suction Centrifugal Pump driven by Electric Motor, End Suction Diesel Pump, and Vertical Jockey Pump.

* Pumps are assembled with suction and discharge line accessories as well as Control Panel.

* Available Flow Capacities 50-1500GPM.

* Available Head/Pressure 1-14bar.

* Accessories include Suction pipe, Discharge pipe with Flanges, Battery, Gate Valves, Check Valves, Flexible Expansion Joints, Pressure Switches, Pressure Gauge,

Base Frame, etc.


Lifeguards for your safety
A Fire pump is an essential element for all highrise buildings. Fire pumps are also a necessity in warehouses and facilities that do not have adequate city water pressure.
With more than two decades of experience, we design, test and manufacture fire pumps to cater to diversified needs of our customers.

Our standard pumps can be manufactured in skid mounted units which are piped and wired. All the pumps are on a common base which also can be enclosed.

Our most comprehensive types of pumps used for fire service include end suction pump, horizontal split case pump and vertical pump models including stainless steel,
cast iron and bronze construction in standard configurations are provided by us. Close coupled frame mounted and engine drive options are also available.


APPLICATIONS

*  Fire Fighting System

*  Fire Hose Rack Systems

*  Fire Hose Reel Systems

*  Fire Foam Systems

*  Fire Deluge Systems

*  Fire Hydrant Systems

*  Fire Sprinkler Systems


USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 15 bar

Continuous service S1


PATENTS
Registered model PST

Registered Patent Design n° 201530478502.0


Main Pumps for Fire Pump Set PEDJ

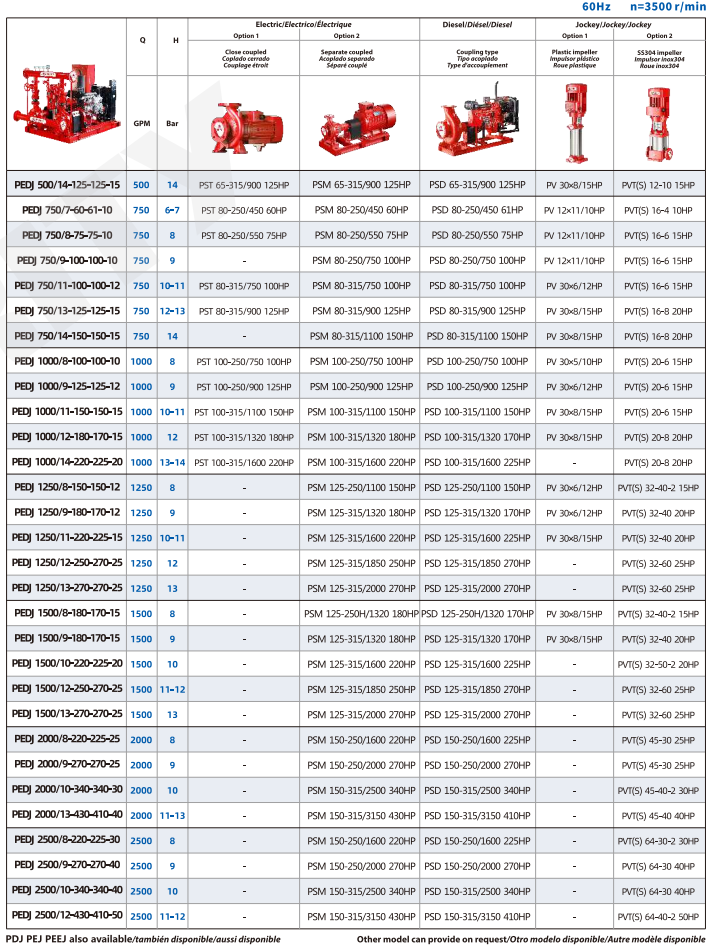

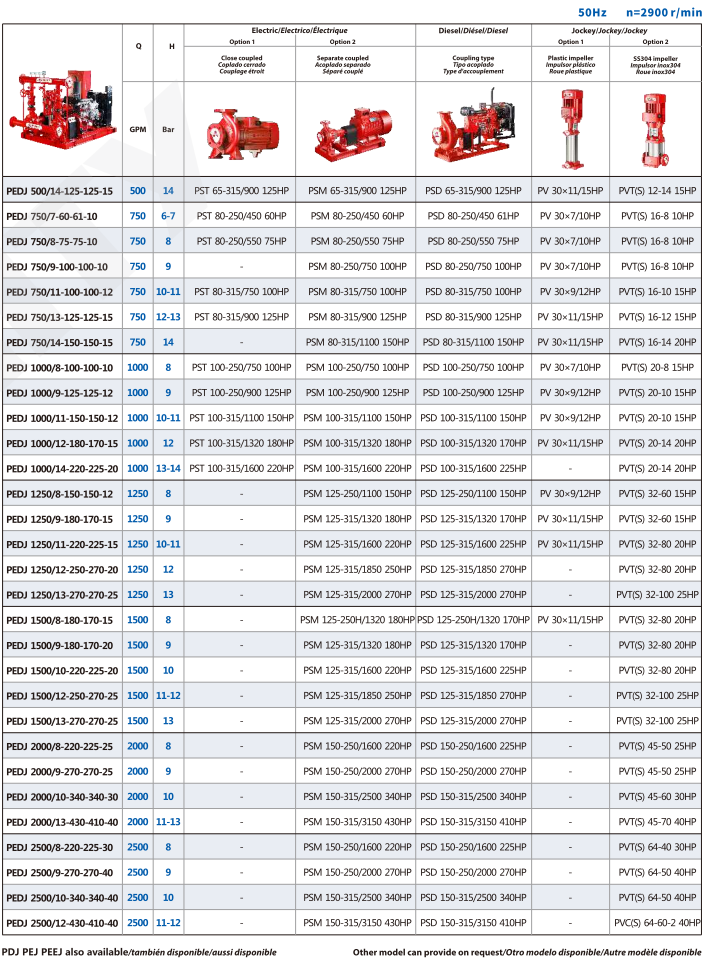

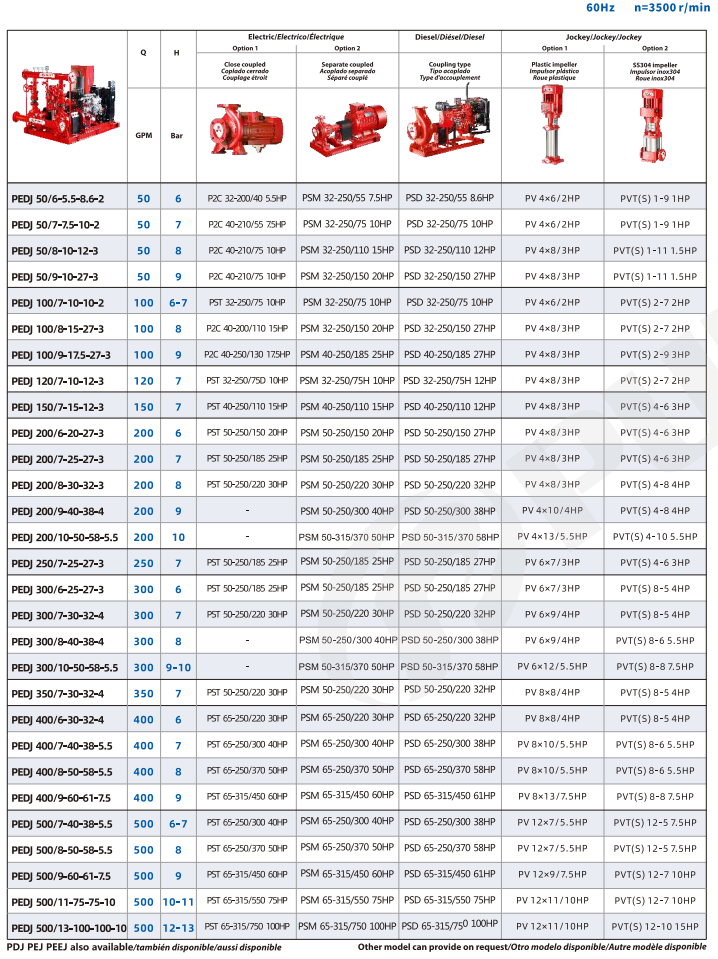

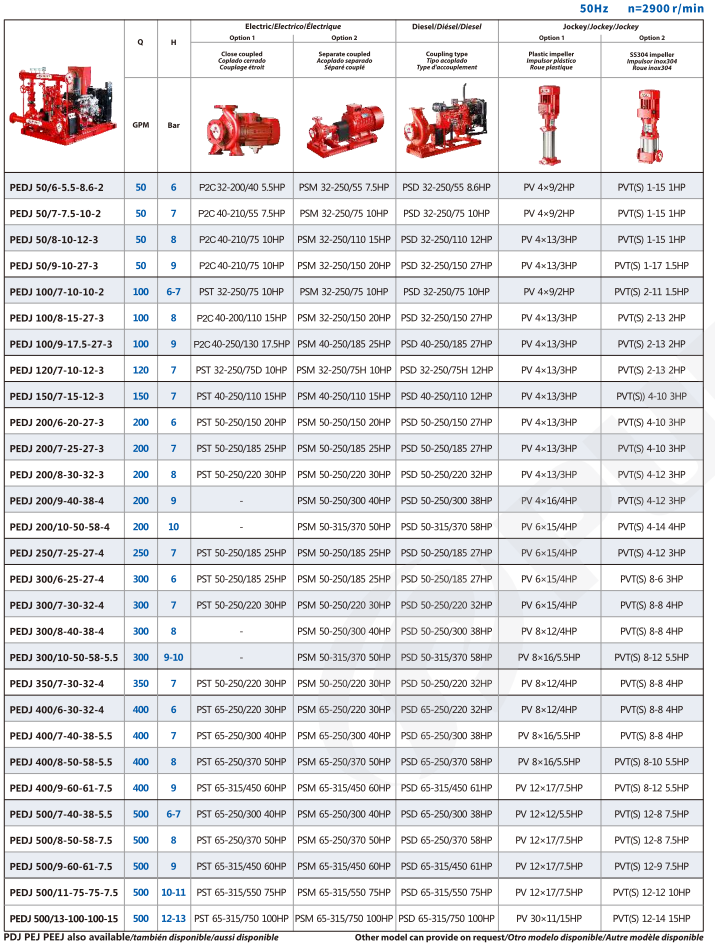

Fire Pump Group Technical  Data and Quick Selection Table for Pump Models




You can send inquiry to exp@cnpurity.com for quick quotations!


Spare Parts

Production Line



Packaging & Shipping




Our Exhibition




Certifications
