PSTF

Bomba contra incendios de succión final para conjunto de bomba contra incendios

DESCRIPCIÓN TÉCNICA
· Nuevo diseño de bomba para extinción de incendios
· Diseño original de PURITY (patentado)
· Motor cuadrado y motor redondo disponibles
· Motor YE3 de alta eficiencia, con protección IP55 clase F
· Carcasa de bomba con revestimiento anticorrosivo
· Impulsor en acero inoxidable AISI 304 o latón
· Eje en acero inoxidable AISI 304
· Contrabrida galvanizada con pernos, tuercas y juntas
· Rodamiento NSK de calidad, sello mecánico resistente al desgaste
· Modelos para capacidades desde 80-5000 US GPM

3D PRODUCT CHAT NOW

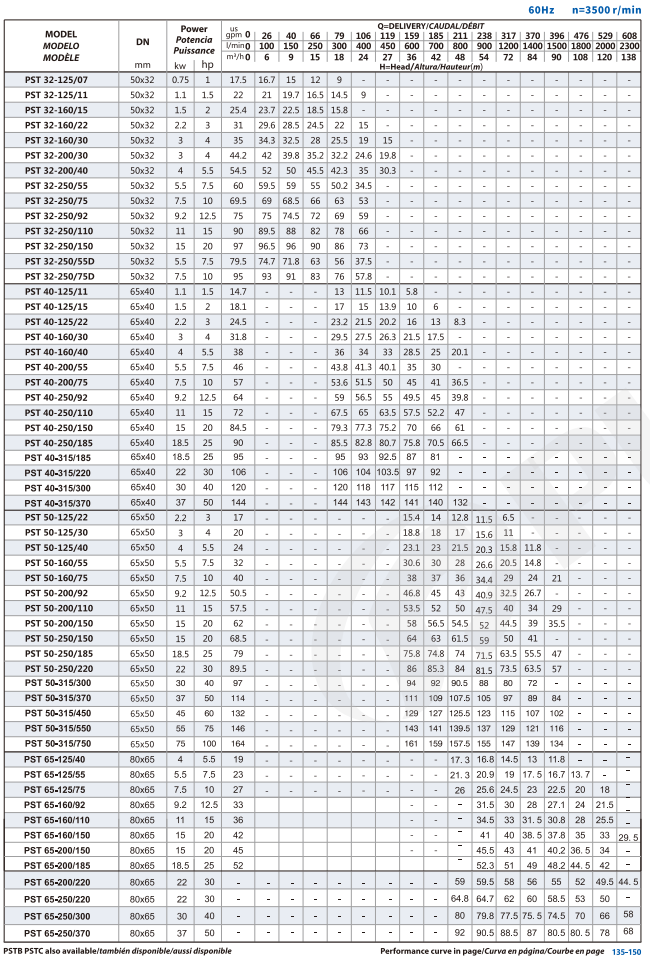

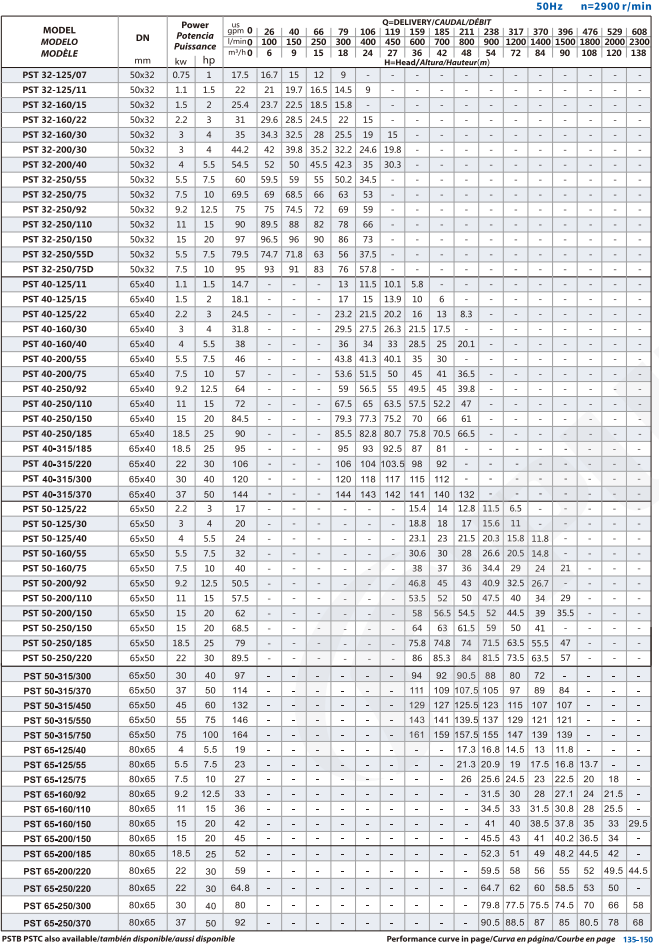

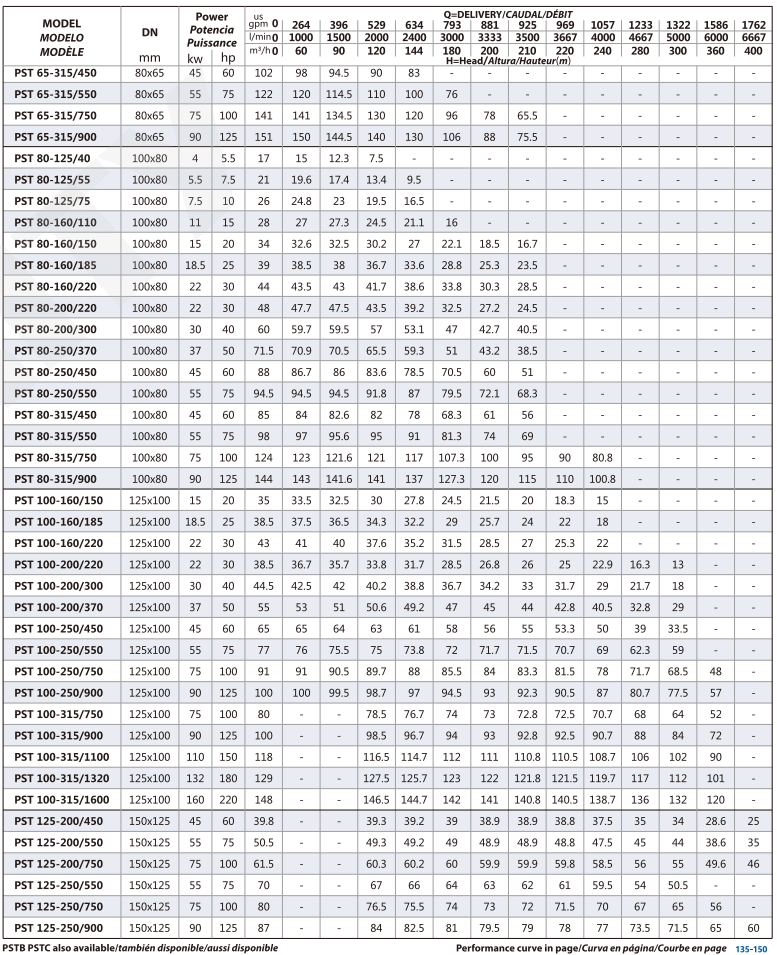

Product Specification (50HZ) 60HZ

Related Products

Contact

Please send inquiry to exp@cnpurity.com for prompt reply !

Product Description

Techinical Description
New EN733 standard centrifugal pump
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal
Application
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
Using Limits
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1
Standard Impeller Material
