PST

Bombas de vórtice centrífugas eléctricas horizontales para suministro de agua y sistema de extinción

DATOS TÉCNICOS

● Motor cuadrado y motor redondo disponibles
● Motor YE3 de alta eficiencia, con protección IP55 clase F
● Carcasa de bomba con revestimiento anticorrosivo.
● Impulsor en acero inoxidable AISI 304 o hierro fundido
● Eje en acero inoxidable AISI 304 o hierro galvanizado
● Rodamiento NSK de calidad, sello mecánico resistente al desgaste

3D PRODUCT CHAT NOW

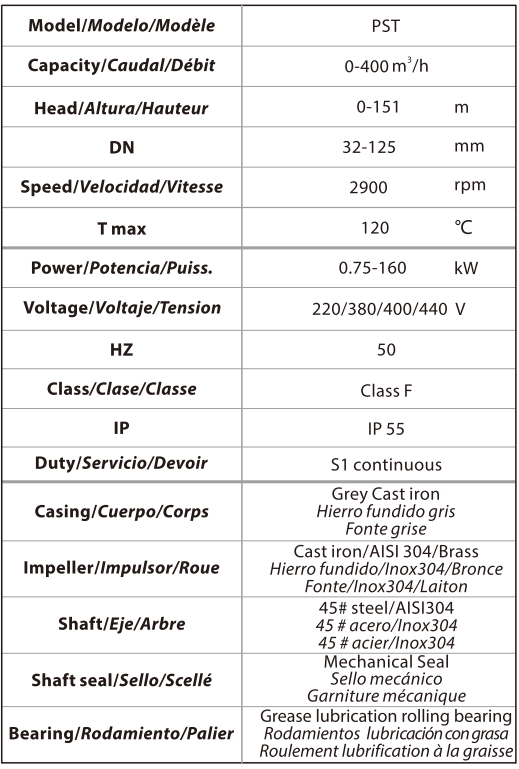

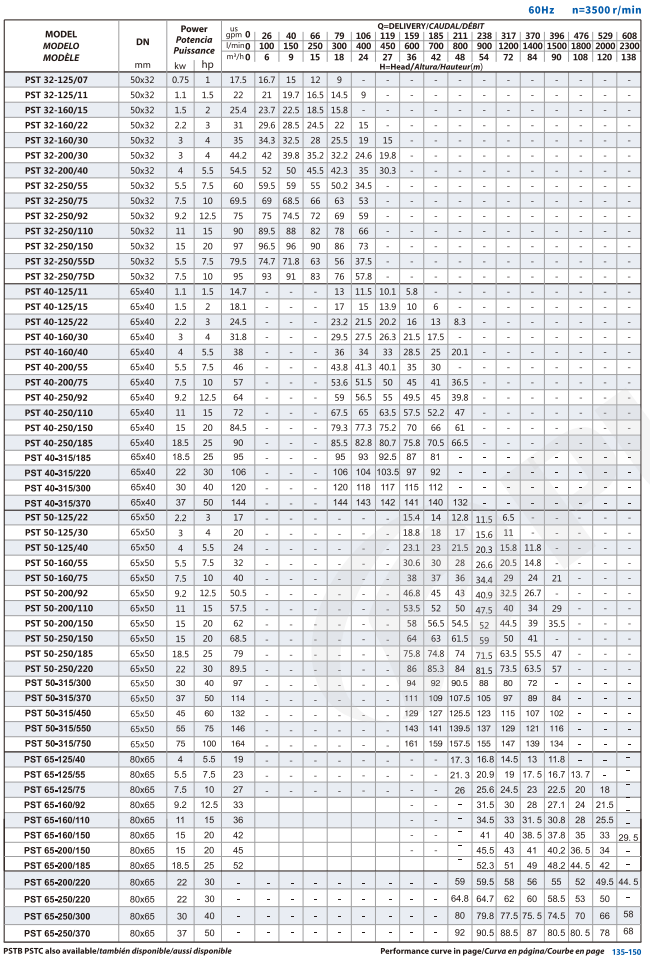

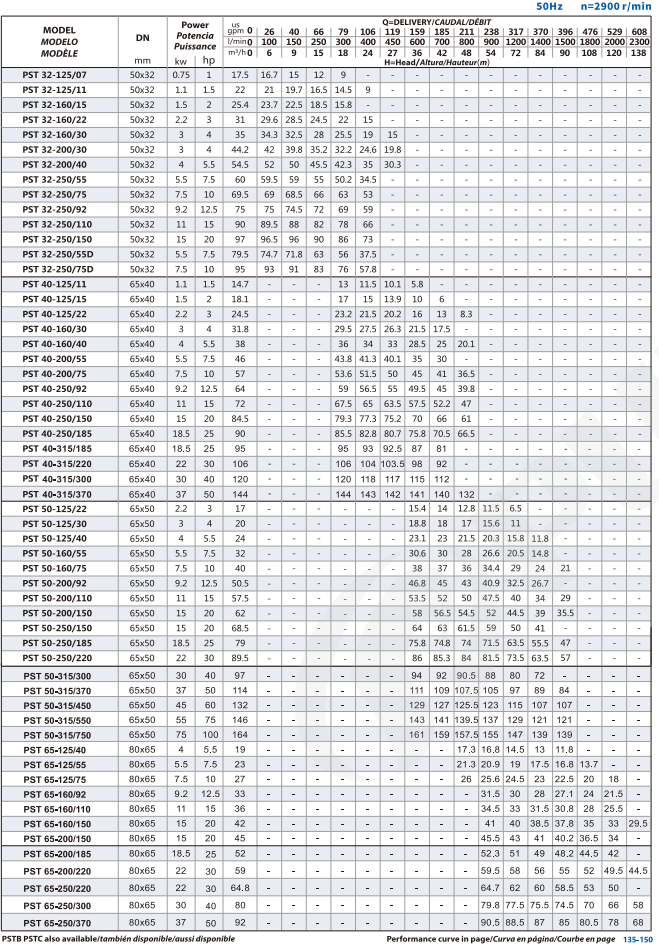

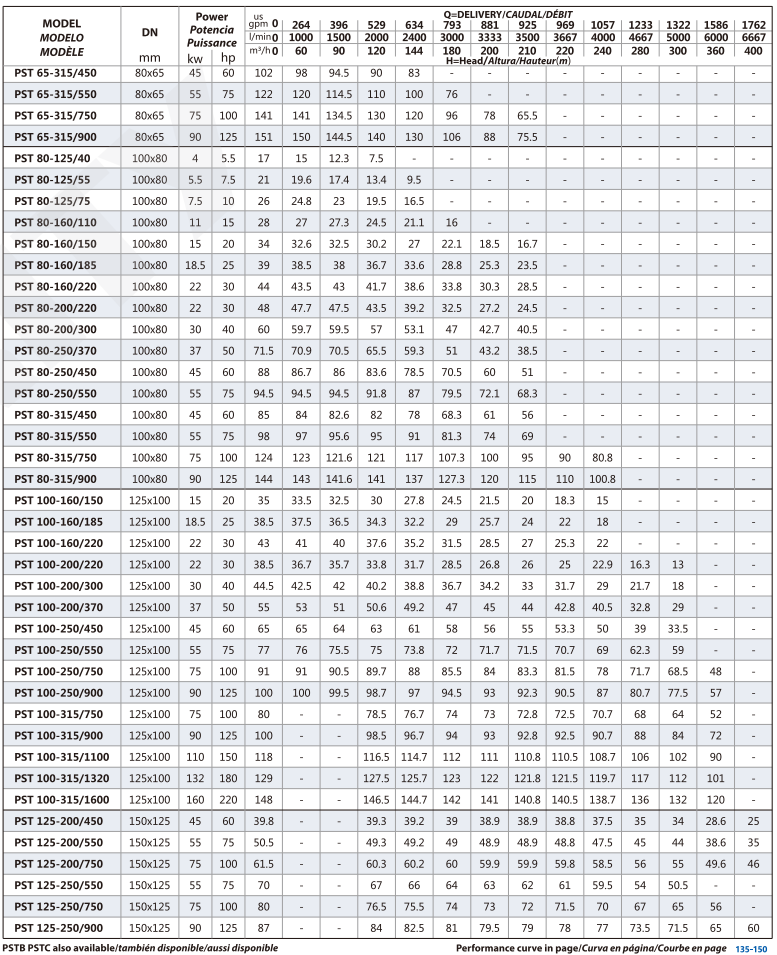

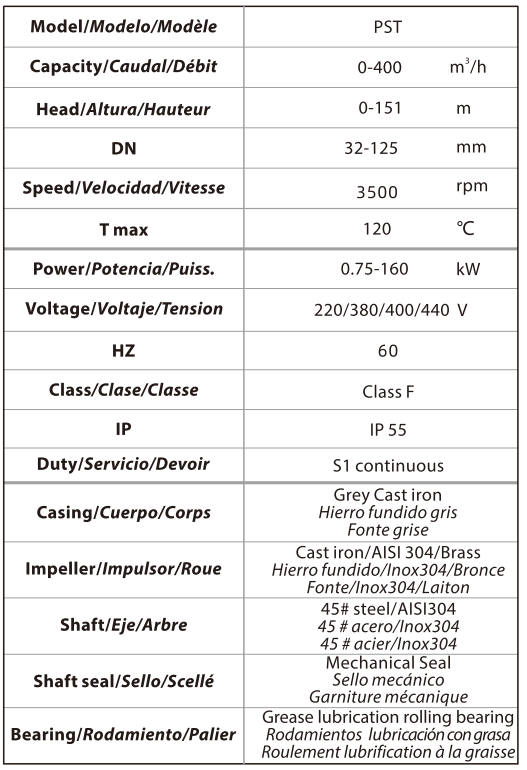

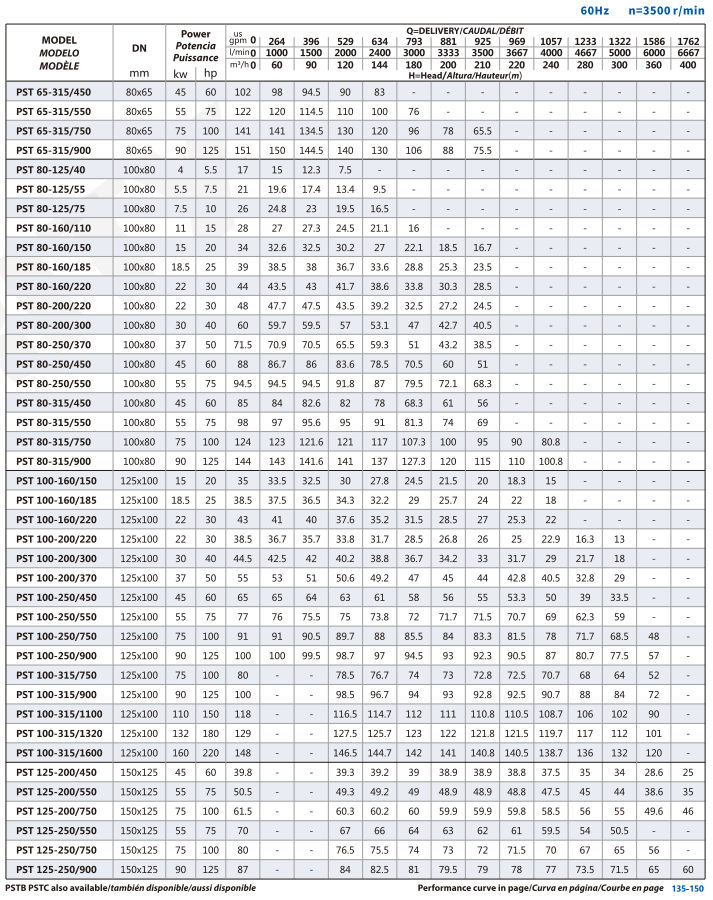

Product Specification (50HZ) 60HZ

Hot Sale

Contact Information

Please send inquiry to exp@cnpurity.com for prompt reply !

Product Description

PST End Suction Pump Series-- for Industrial and Fire Application

APPLICATION

Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.

ADVANTAGES

●New EN733 standard centrifugal pump
●Original design by PURITY (patented)
●Both square motor & round motor available
●YE3 high efficient motor, with protection IP55 class F
●Pump case with anti-corrosive coating
●Impeller in stainless steel AISI 304 or cast iron
●Shaft in stainless steel AISI 304 or galvanized iron
●Galvanized counter flange with bolts, nuts and gaskets
●Quality NSK bearing, wear resistance mechanical seal
