Product Description

TECHNICAL DESCRIPTION

New centrifugal pump
Original design by PURITY (patented)
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Quality bearing, wear resistance mechanical seal

APPLICATIONS

GW series non-blocking pipeline sewage pump is suitable for

the discharge of serious polluted wastewater from

factory commercial, sewage discharge station in residential area,

drainage system of urban sewage treatment plant, drainage station of civil air defense system,

water supply equipment of water supply plant, sewage discharge of hospital and hotel,

municipal administration Engineering construction sites, exploration, mine supporting machines,

rural biogas digesters, farmland irrigation and other industries, sewage and sewage with conveyor belts,

can also be used for clean water and with weak corrosive media.

Main Application

1. The sewage pump series products are used when the rated voltage is 380V and the power frequency is 50Hz;

2. The medium temperature does not exceed 99C, the medium density is ≤1150Kg/m3, and the PH value is within the range of 5--9;

3, the ambient temperature does not exceed 40C, the altitude does not exceed 1000 meters;

4, the viscosity of the transport medium does not exceed 1000CP

5, the product material is mainly cast iron, can not be used in strong corrosive or strong sulphur-independent medium;

Note: Before the selection or installation, the actual use conditions of the pump must meet the above requirements to ensure the correct use of the product!

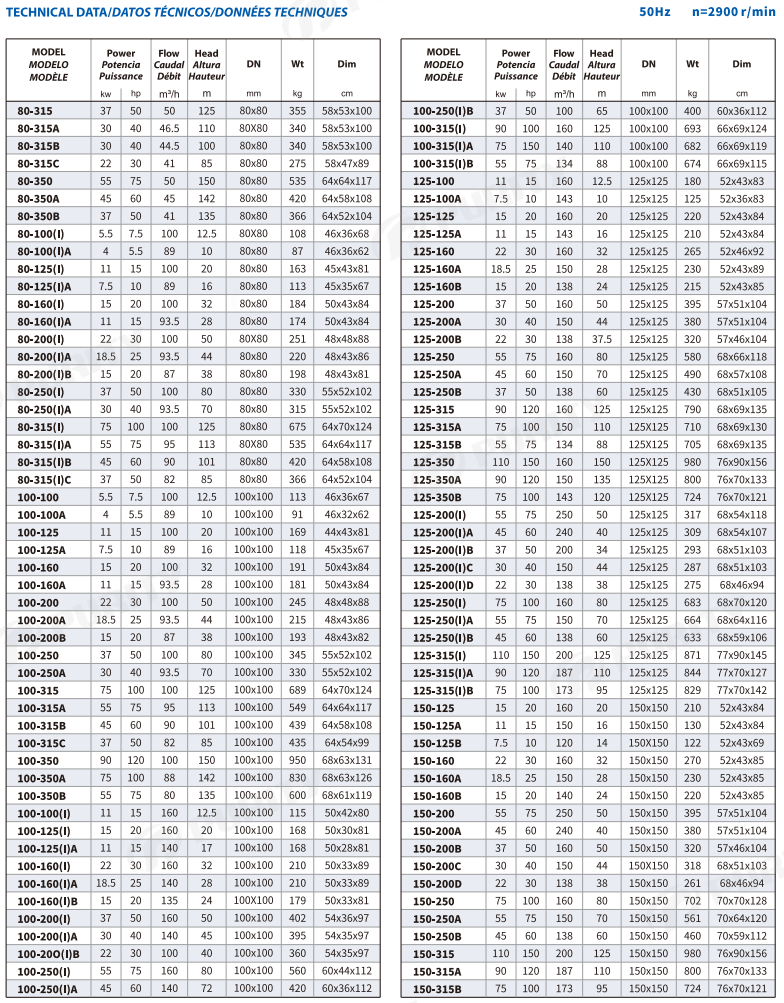

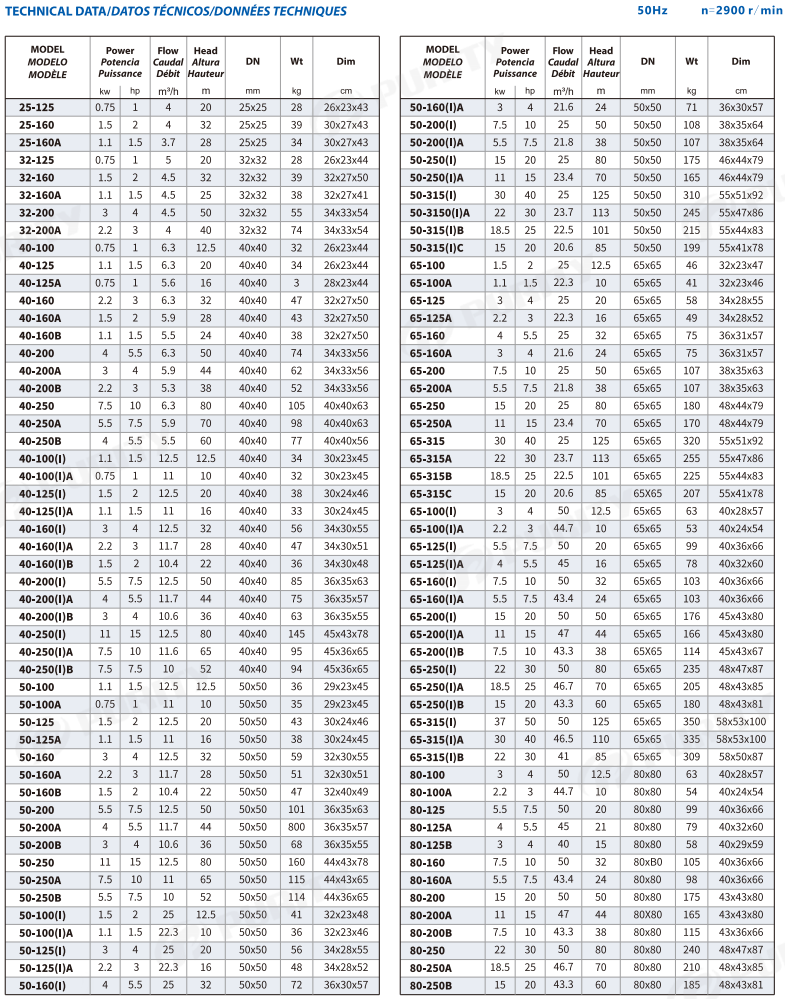

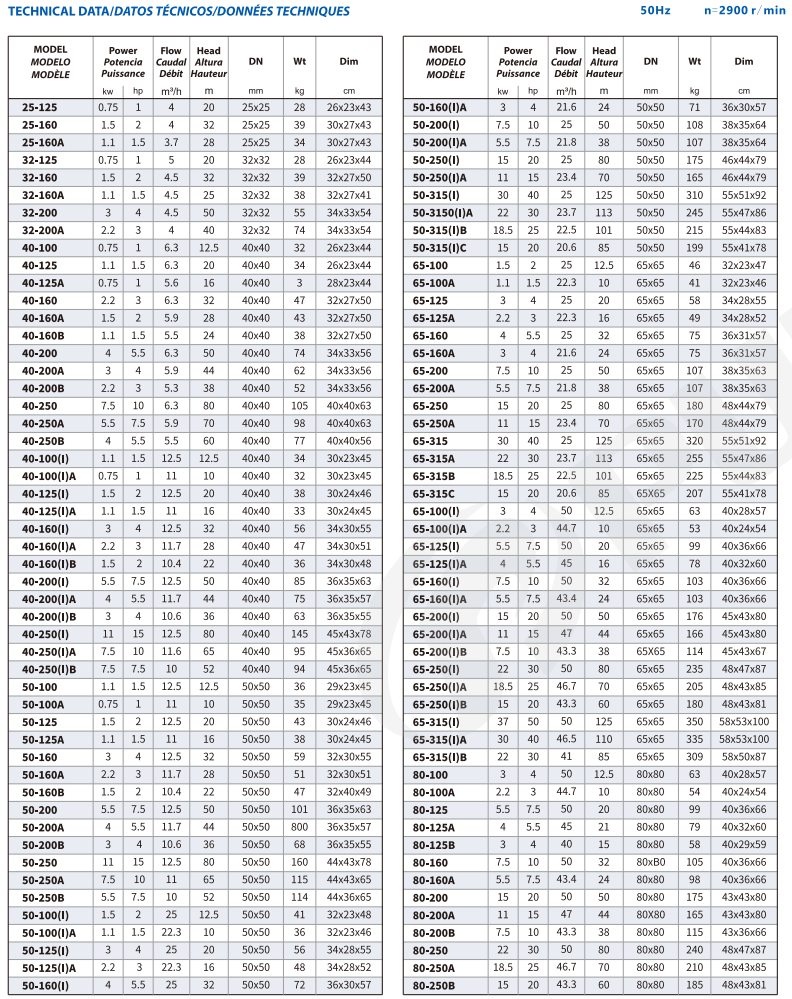

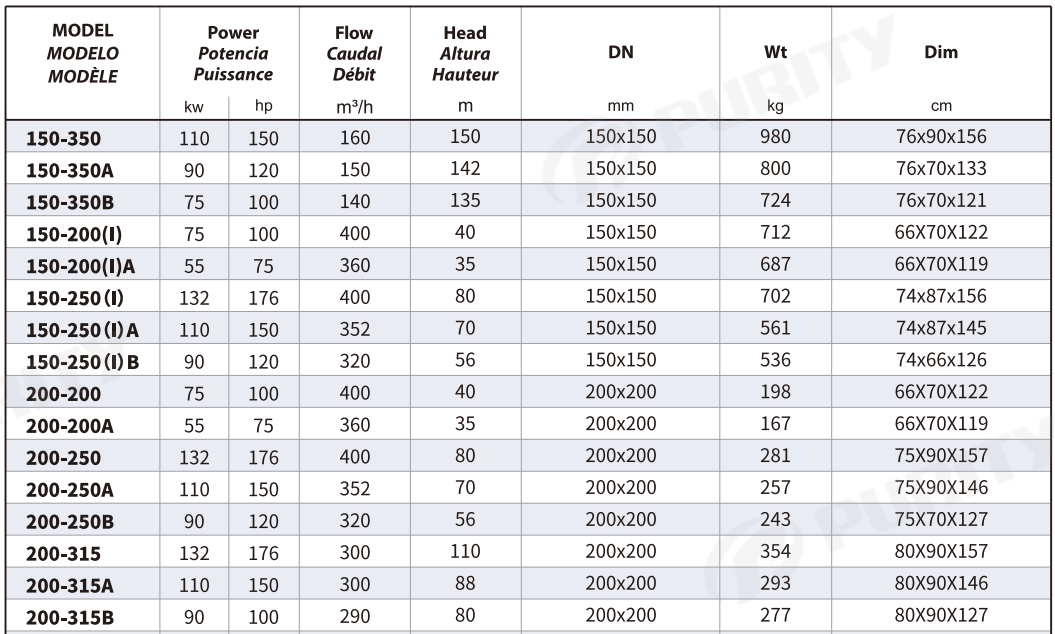

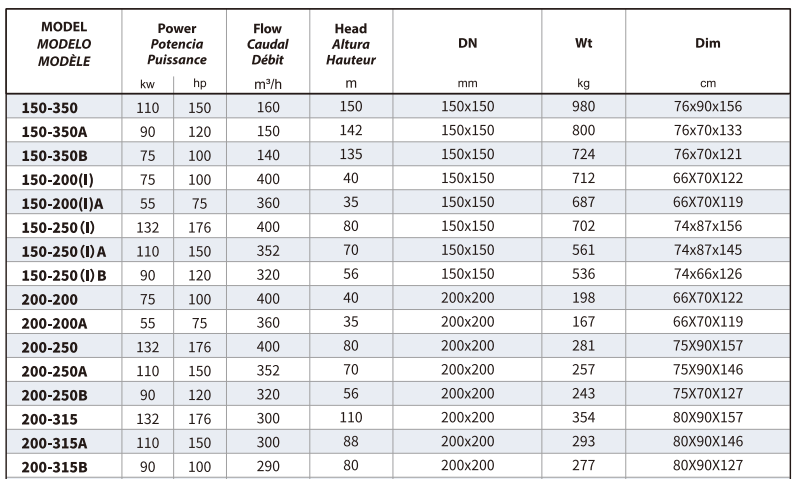

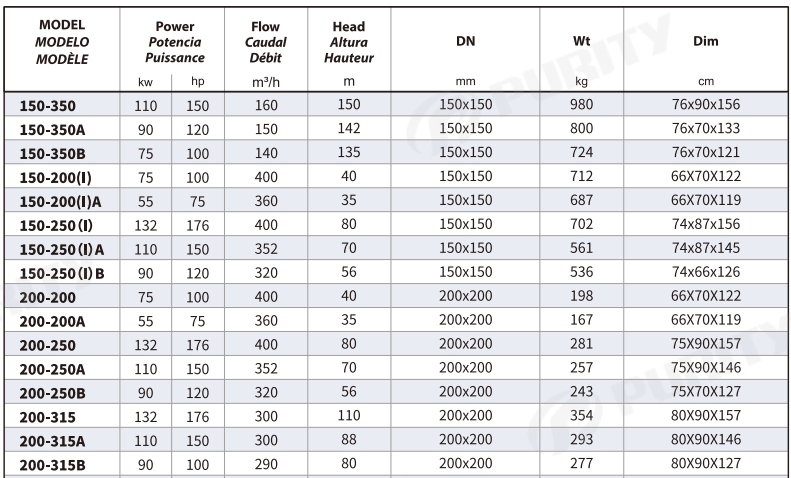

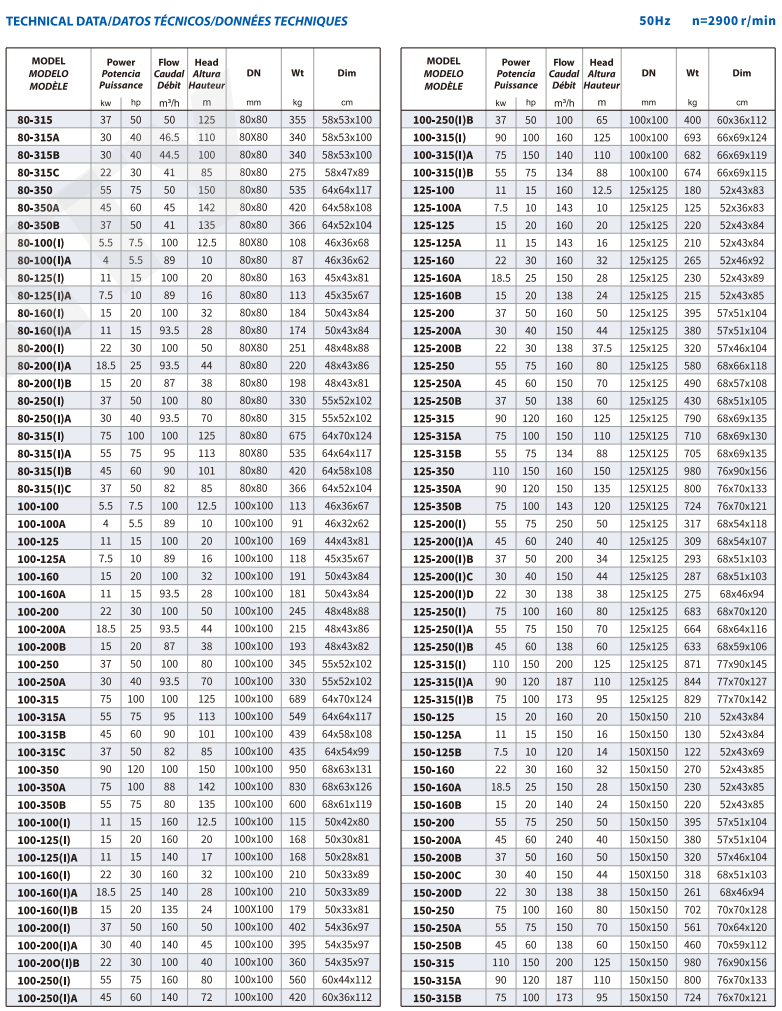

TECHNICAL DATA / DATOS TéCNICOS                                             50Hz   n=2900  1/min
