Bomba centrífuga de eje desnudo LOWARA para bomba de agua

DESCRIPCIÓN TÉCNICA
· Nuevo diseño de bomba para extinción de incendios
· Diseño original de PURITY (patentado)
· Motor cuadrado y motor redondo disponibles
· Motor YE3 de alta eficiencia, con protección IP55 clase F
· Carcasa de bomba con revestimiento anticorrosivo
· Impulsor en acero inoxidable AISI 304 o latón
· Eje en acero inoxidable AISI 304
· Contrabrida galvanizada con pernos, tuercas y juntas
· Rodamiento NSK de calidad, sello mecánico resistente al desgaste
· Modelos para capacidades desde 80-5000 US GPM
3D PRODUCT CHAT NOW

Related Products



Contact


Please send inquiry to exp@cnpurity.com for prompt reply !


Product Description


Techinical Description
New EN733 standard centrifugal pump
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal
Application
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
Using Limits
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1
Standard Impeller Material

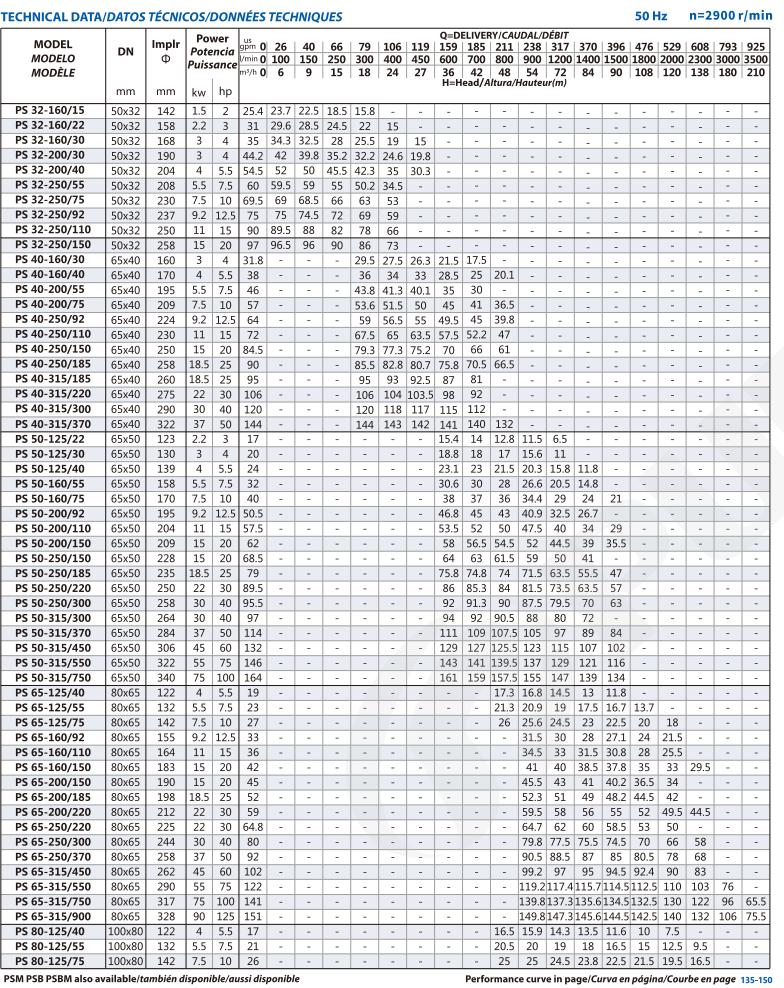

Technical Data                                                            50Hz n=2900 1/min

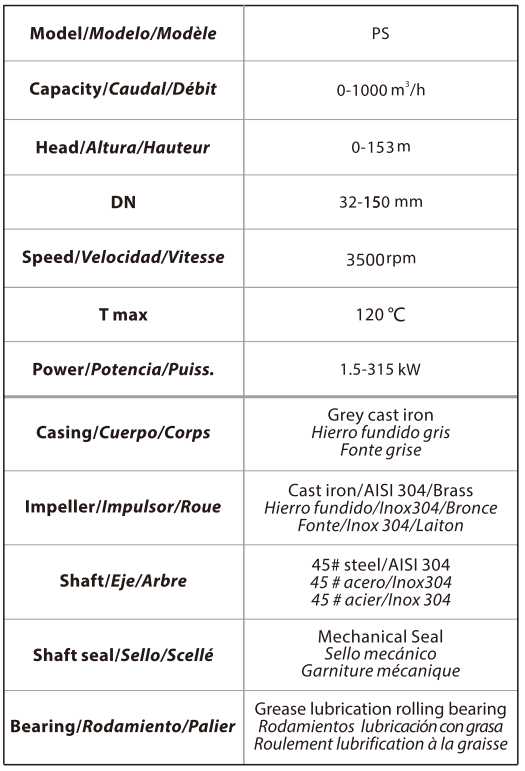

Material Description


Dimensions And Weight





Send an email exp@cnpurity.com for more information !



Spare Parts


Production Line




Packaging & Shipping




Our Exhibition




Certifications




Related Products



Contact


Please send inquiry to exp@cnpurity.com for prompt reply !


Product Description


Techinical Description
New EN733 standard centrifugal pump
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal
Application
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The EN733 centrifugal pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
Using Limits
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1
Standard Impeller Material

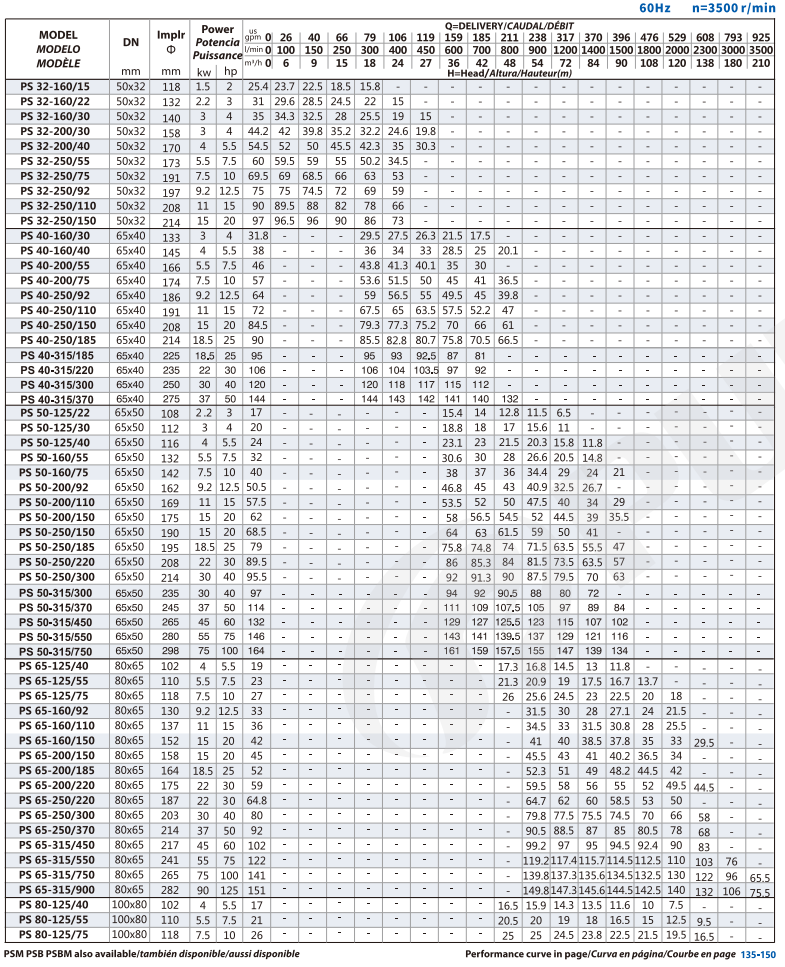

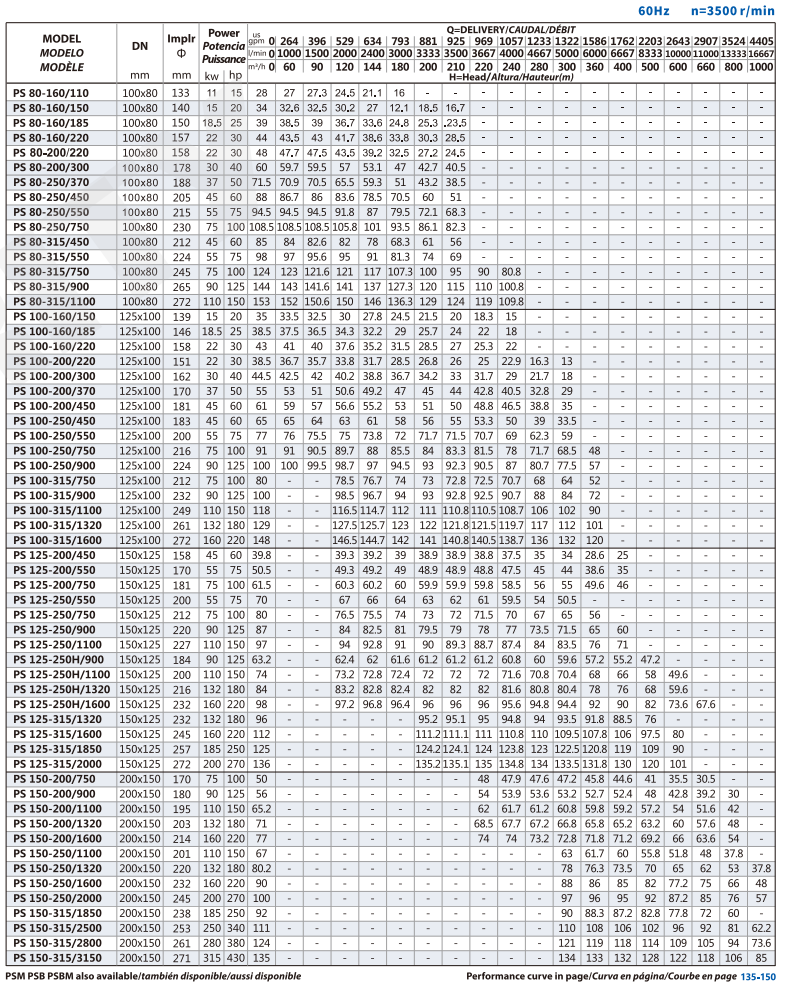

Technical Data                                                            60Hz n=3500 1/min


Material Description


Dimensions And Weight





Send an email exp@cnpurity.com for more information !



Spare Parts


Production Line




Packaging & Shipping




Our Exhibition




Certifications
