PEDJ

[PEDJ] Aplicación contra incendios y bomba centrífuga Sistema de bomba de motor diesel contra incend

DESCRIPCIÓN TÉCNICA
· Diseño original de PURITY (patentado)
· Motor cuadrado y motor redondo disponibles
· Motor YE3 de alta eficiencia, con protección IP55 clase F
· Carcasa de bomba con revestimiento anticorrosivo
· Rodamiento NSK de calidad
· Carcasa de bomba con revestimiento anticorrosivo
· Impulsor en acero inoxidable AISI 304 o hierro fundido
· Eje en acero inoxidable AISI 304 o hierro galvanizado
· Contrabrida galvanizada con pernos, tuercas y juntas
3D PRODUCT CHAT NOW

Related Products




Product Description


The fire fighting system consists of electric pumpdiesel pump,

jockey pump and control panel.

Electric Pump(PST or PSM)
Usable Pump-- Single stage pump, end suction pump, horizontal open pump, multistage pump,

Pump case can made of cast iron or stainless steel.

Impeller can adopt copper impeller

Diesel Pump (PSD)

Flow head and pressure or other parameters are the same as the electric pump,

The diesel engine is connected to the pump head through the coupling.

The diesel pump includes Radiator, base frame, PTO shaft, stop solenoid(WOODWARD),

vibration absorb, air filter, controller, muffler, tool box, plywood case


Jockey Pump (PV)

Vertical pump type.

The technical parameters is different from the electric or diesel pump, can also be customized.


Fire Pump Control Panel

Fire Pump Control Panel is the Pump System brain that designed to Control & Monitor the

operation of the Electric, Diesel, and Jockey Pumps Drivers, and makes up pumps for both

Manual & Automatic models, as well as turns pumps drivers ON/OFF under specific conditions.


Spare Parts

Accessories include Suction pipe, Discharge pipe with Flanges, Battery, Gate Valves,

Check Valves,Flexible Expansion Joints,Pressure Switches, Pessure Gauge, Base Frame,etc


Hot Sale Types

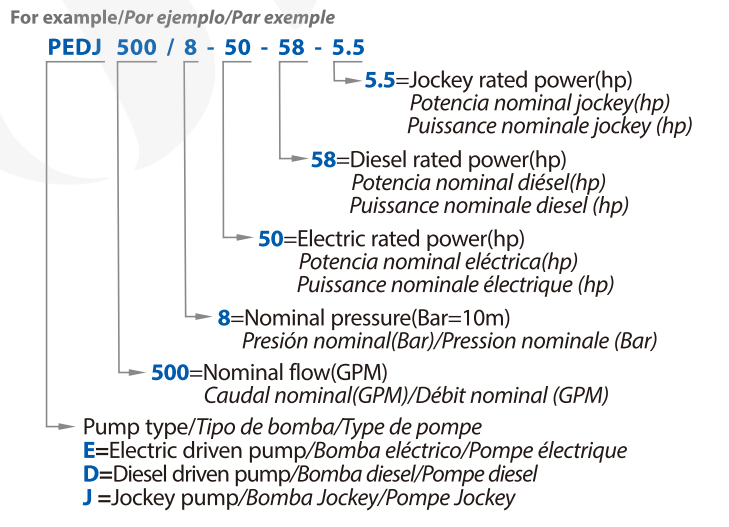

GPM Bar REGULAR MODEL ElECTRIC PUMP DIESEL PUMP JOCKEY PUMP MOTOR
200 7 PEDJ200/7-20-27-3 PST 50-250/158
PSD 40-250-150 PV 6X11-3HP 15KW
250 7 PEDJ250/7-25-27-4 PST 50-250/185 PSD 50-250/185 PV 8X12-4HP 18.5KW
350
7 PEDJ350/7-30-32-4 PST 50-250/220 PSD 50-250/220 PV 8X12-4HP 22KW
500 8 PEDJ500/8-50-58-5.5 PST 65-250/370 PSD 65-250/370 PV 12X12-5.5HP 37KW
750 8 PEDJ750/8-75-75-7.5 PST 80-250/550 PSD 80-250/550 PV 12X17-7.5HP 55KW
... ... ... ...

...


Other sizes can provide on request.

Please send inquiry to mina@cnpurity.com for prompt reply !


Technical  Data
