[PT] Bomba de agua centrífuga vertical Bomba de superficie de PURITY

• Nueva bomba vertical en línea
• Diseño original de PURITY (patentado)
• Motor cuadrado y motor redondo disponibles
• Motor YE3 de alta eficiencia, con protección IP55 clase F
• Carcasa de bomba con revestimiento anticorrosivo
• Impulsor en acero inoxidable AISI 304 o hierro fundido
• Eje en acero inoxidable AISI 304 o hierro galvanizado
• Contrabrida galvanizada con pernos, tuercas y juntas
• Rodamiento NSK de calidad, sello mecánico resistente al desgaste
3D PRODUCT CHAT NOW

Related Products



Product Description


PT Vertical Inline Pump

TECHNICAL DESCRIPTION
New vertical inline pump
Original design by PURITY (patented)
Both square motor & round motor available
YE3 high efficient motor, with protection IP55 class F
Pump case with anti-corrosive coating
Impeller in stainless steel AISI 304 or cast iron
Shaft in stainless steel AISI 304 or galvanized iron
Galvanized counter flange with bolts, nuts and gaskets
Quality NSK bearing, wear resistance mechanical seal
APPLICATIONS
Suitable for use with clean water and liquids that are not chemically
aggressive towards the materials from which the pump is made.
The vertical inline pumps are recommended for use in water supply,
cleaning sets, pressure boosting, firefighting sets, irrigation, industrial
applications, water circulation in climatisation sets, agricultural.
USING LIMITS
Liquid temperature between -10℃ and +120℃
Ambient temperature up to +50℃
Max. working pressure 16 bar
Continuous service S1
PATENTS
Registered model PT
Registered Patent Design n°201530478501.6

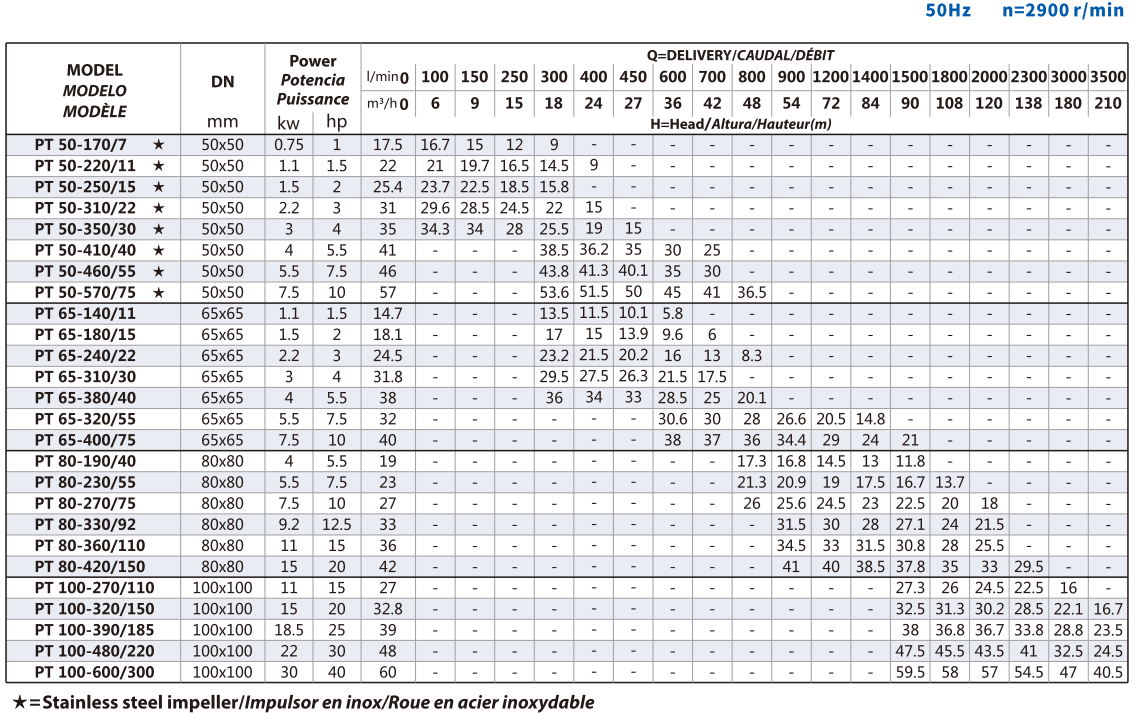

TECHNICAL DATA                    50Hz  n=2900 1/min


No.

Description

Material

No.

Description

Material

No.

Description

Material

1

Pump Case

Cast iron

9

Wound Stator/Rotor

Silicon Steel/Copper

17

Terminal Board

Plastic

2

Impeller

SS304/Cast iron

10

Motor Case

Aluminum

18

Impeller Key

Iron

3

Mechanical Seal

SiC/Carbon/SS304

11

Back Cover

Cast iron

19

Water Deflector

Rubber

4

O-ring

Rubber

12

Reinforced Seal

Rubber

20

Connection Bolt

Steel

5

Connection

Cast iron

13

Fan Cover

Aluminum

21

Impeller Nut

Galvanizated Steel

6

Shaft

SS304/Cast iron

14

Fan

Plastic

22

Release Valve

Brass

7

Reinforced Seal

Rubber

15

Through Bolt

Steel

8

Bearing

Ball Bearing

16

Terminal Box

Aluminum
