PXBD

[pxbd] vertical Long Shaft Deep Well Fire Turbo Pump axial Flow Deep Well stabilizer PUMP

Descripción técnica
El eje del impulsor y el eje del motor están apoyados por rodamientos de cobre
Control de la escorrentía radial del eje en el rango de 0,13 mm de la norma estadounidense
Funcionamiento suave y bajo ruido
Diversos materiales de acero inoxidable, como hierro dúctil, ASTM 304, 316, 416
Selección de acuerdo con las condiciones especiales de trabajo y los requisitos técnicos de los usuarios

3D PRODUCT CHAT NOW

Product Specification (50HZ) 60HZ

Related Production

Product Description

Vertical Turbine Deep Well Fire pump

TECHNICAL DESCRIPTION
--All copper movement, uniform and stable overheating, lower power consumption,

long service life

--Internal thermal protection device to prevent motor overheating caused

by abnormal use.
--Cast iron pump body: high quality cast iron pump head for better corrosion

resistance and longer service life.

--Assembling the pump body: The pump body is assembled by a new assembly

process, which has higher sealing performance and effectively reduces

the noise during operation.
--High-quality accessories: high-standard, high-quality parts, more wear-resistant,

longer service life, and significantly reduced failure rate.
APPLICATIONS

Suitable for use with clean water. For Fire hydrant water supply, sprinkler system,

fire system voltage regulator

Features
--Impeller shaft and the motor shaft are all supported by copper bearings.

--Radial runout of the shaft is controlled within 0.13mm of the US standard.

--Runs smoothly and the noise is low.

--Various stainless steel materials such as ductile iron, ASTM304, 316, 416 are

selected to meet various special working conditions and technical requirements of users.

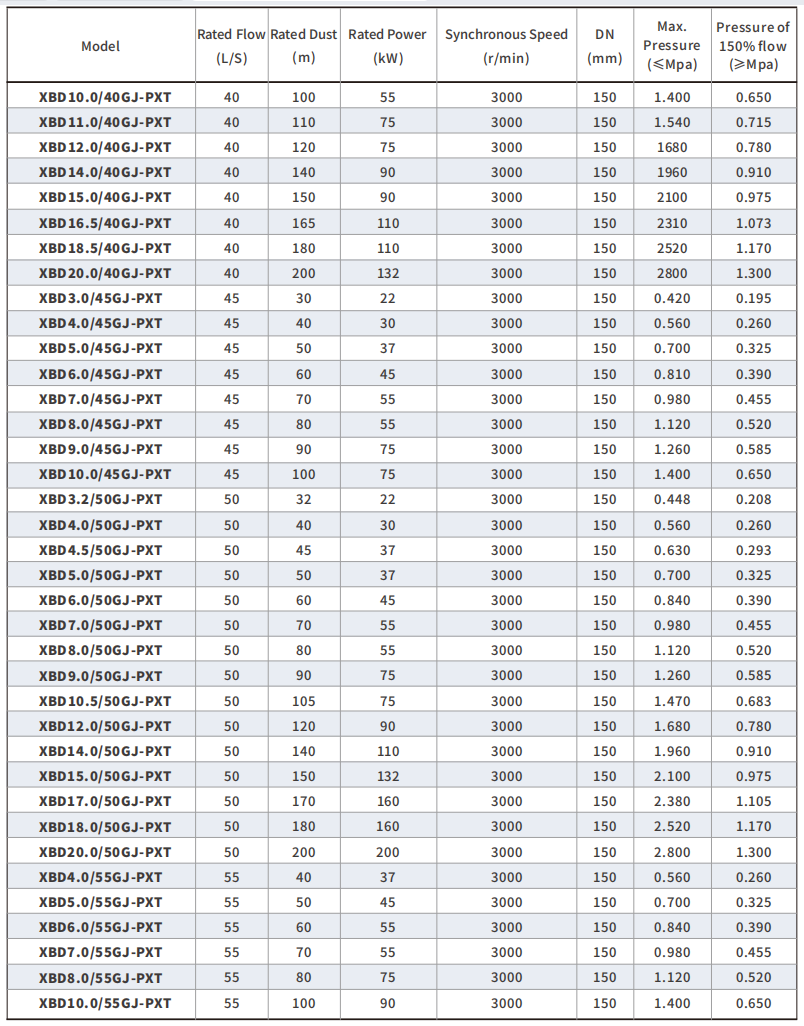

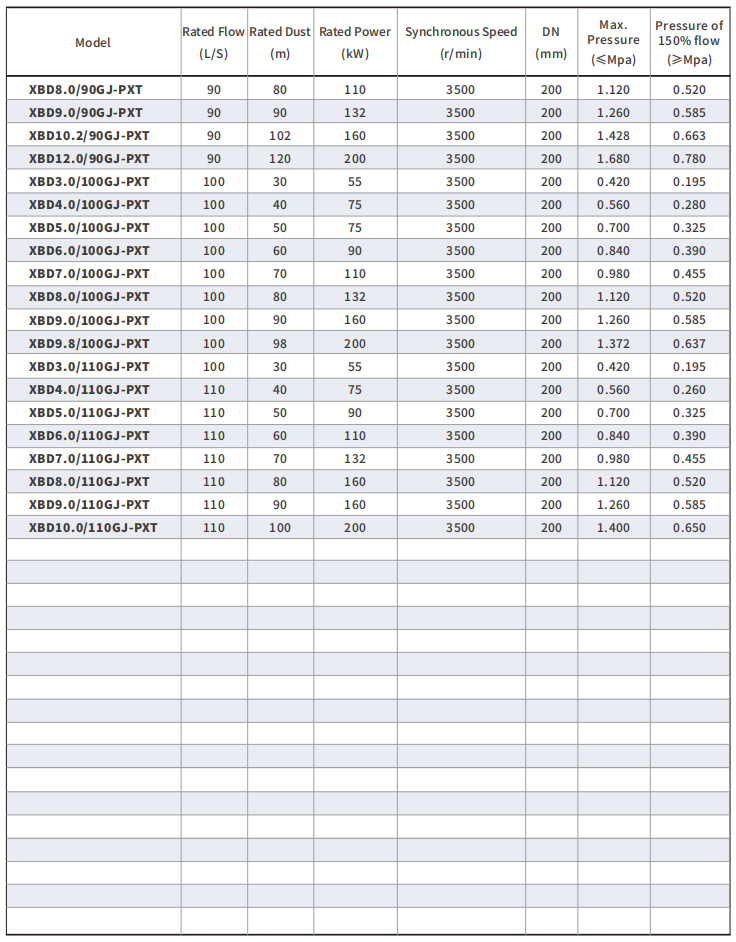

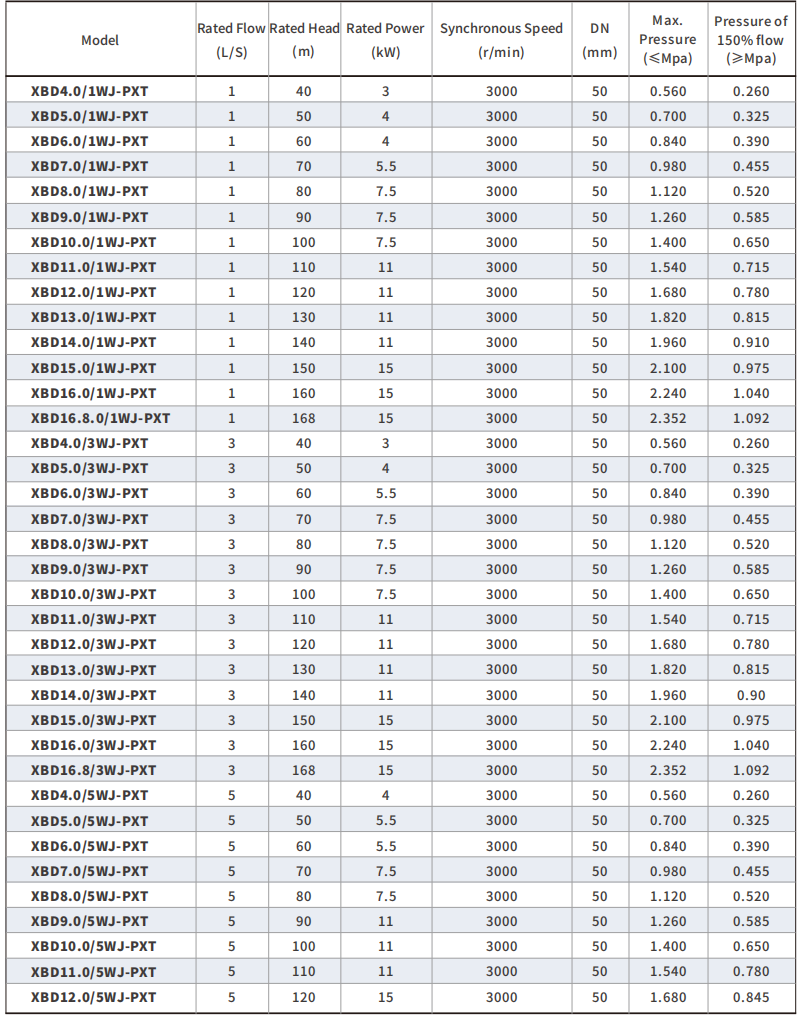

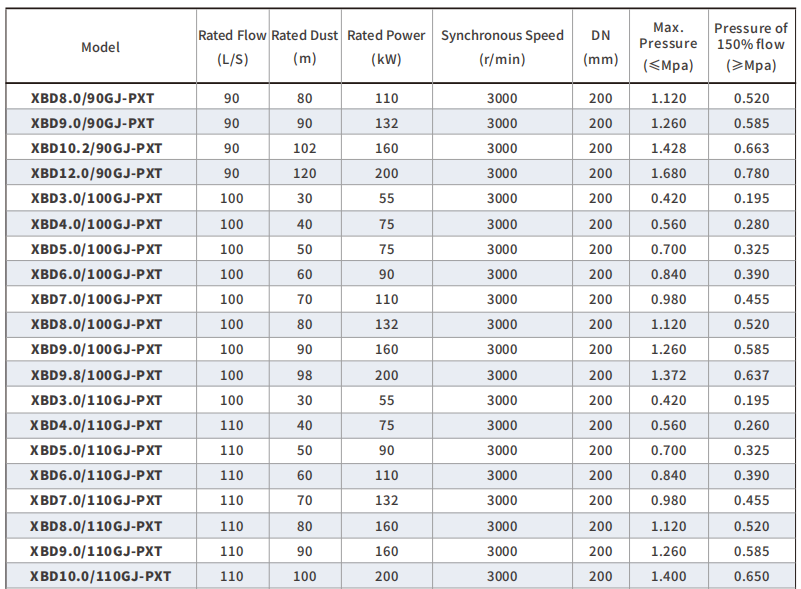

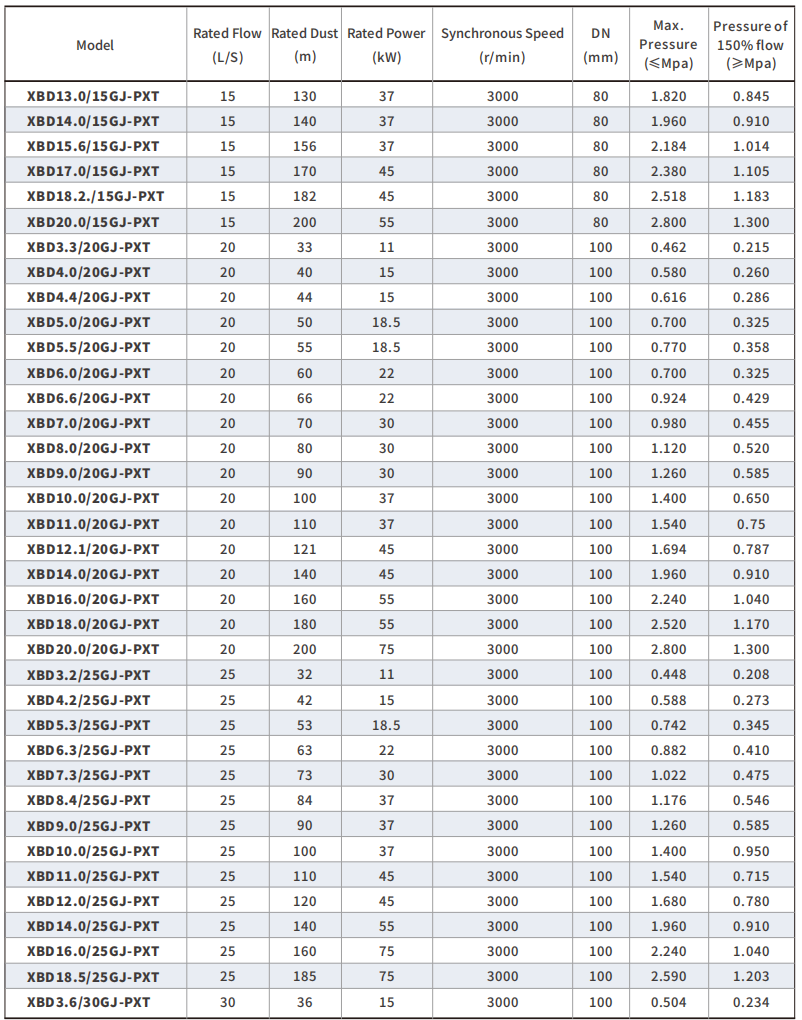

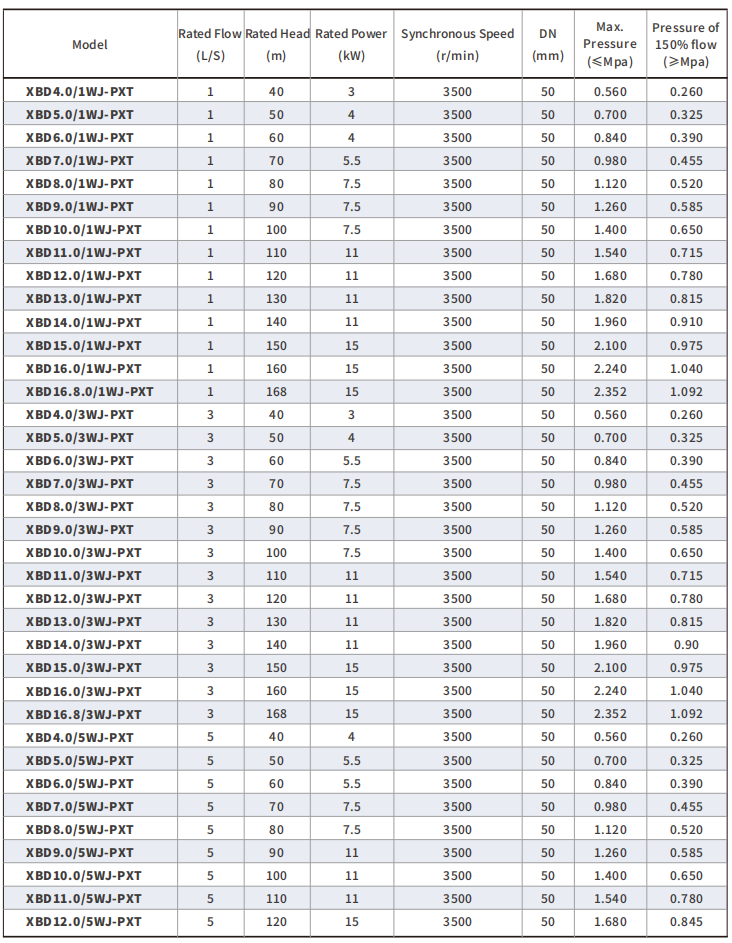

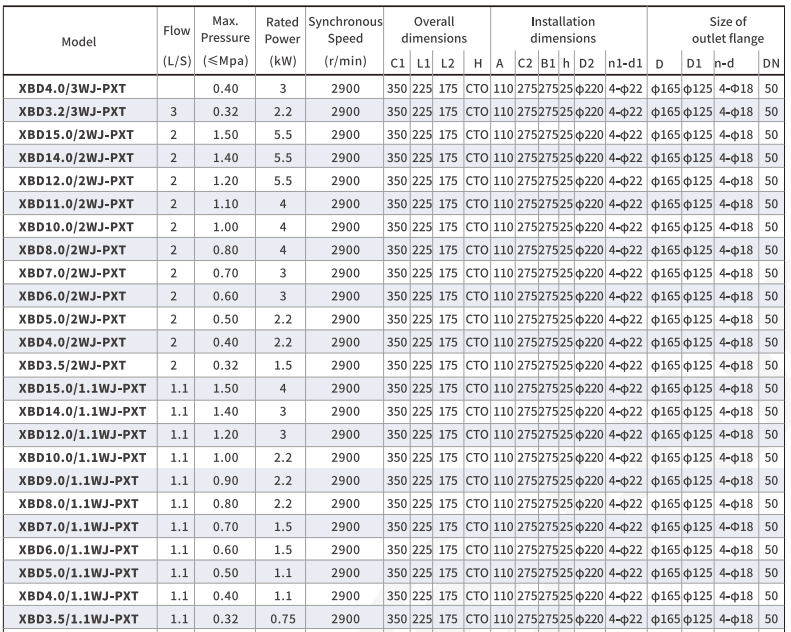

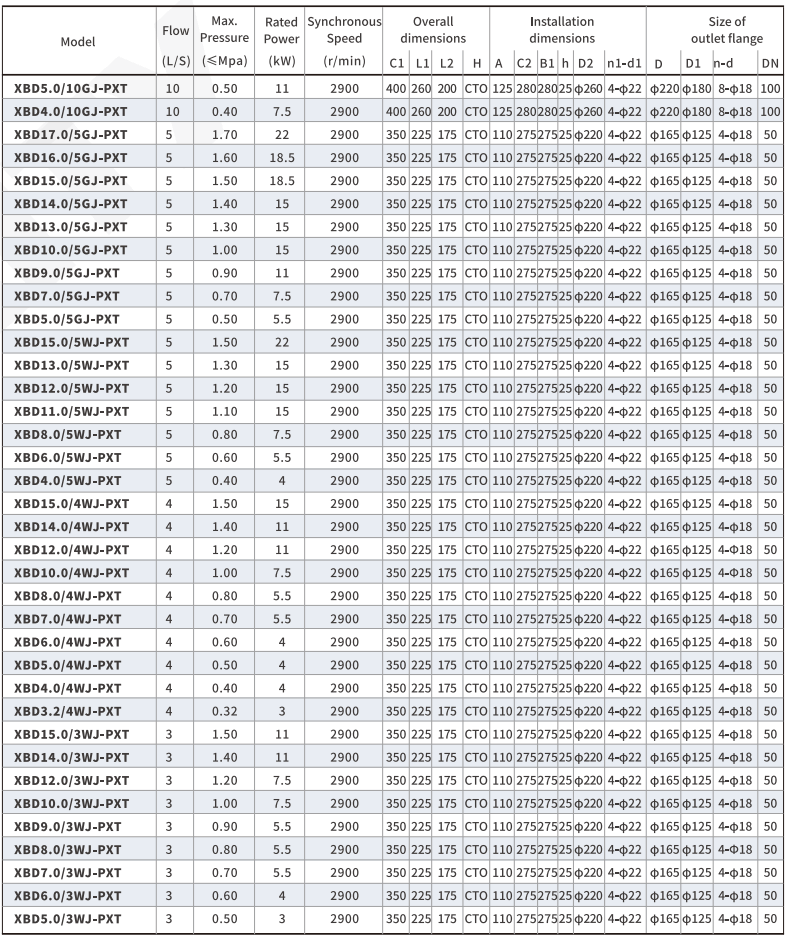

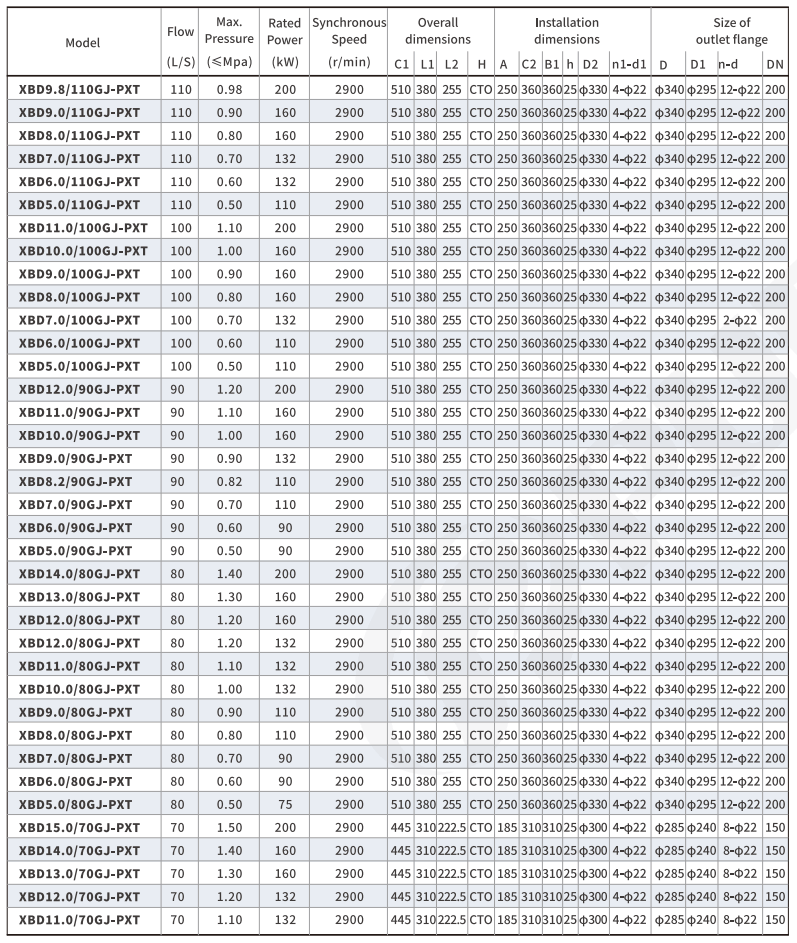

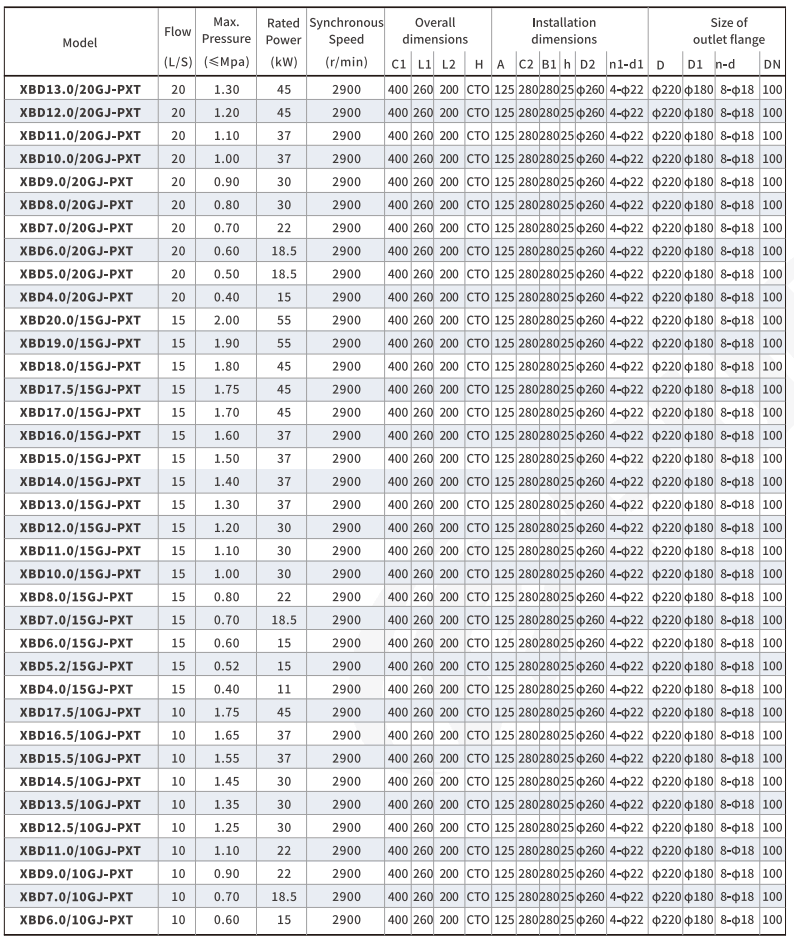

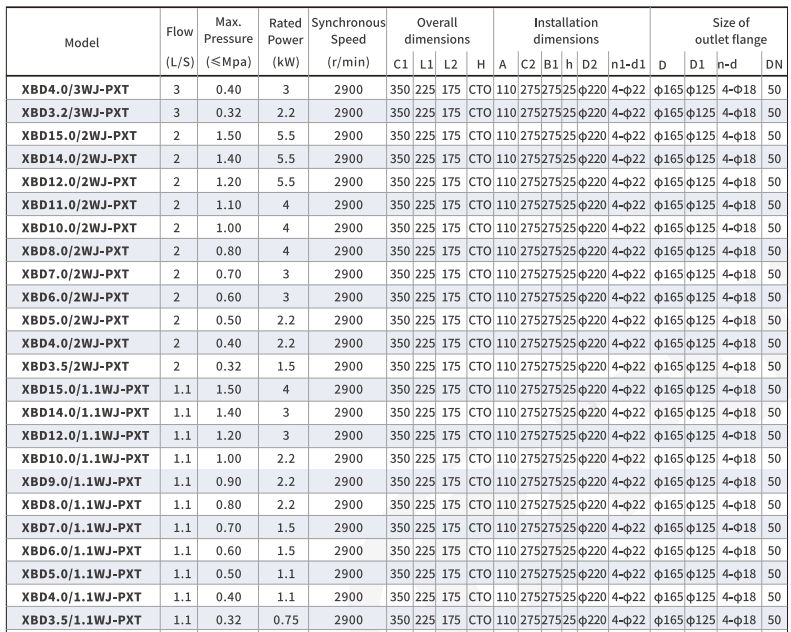

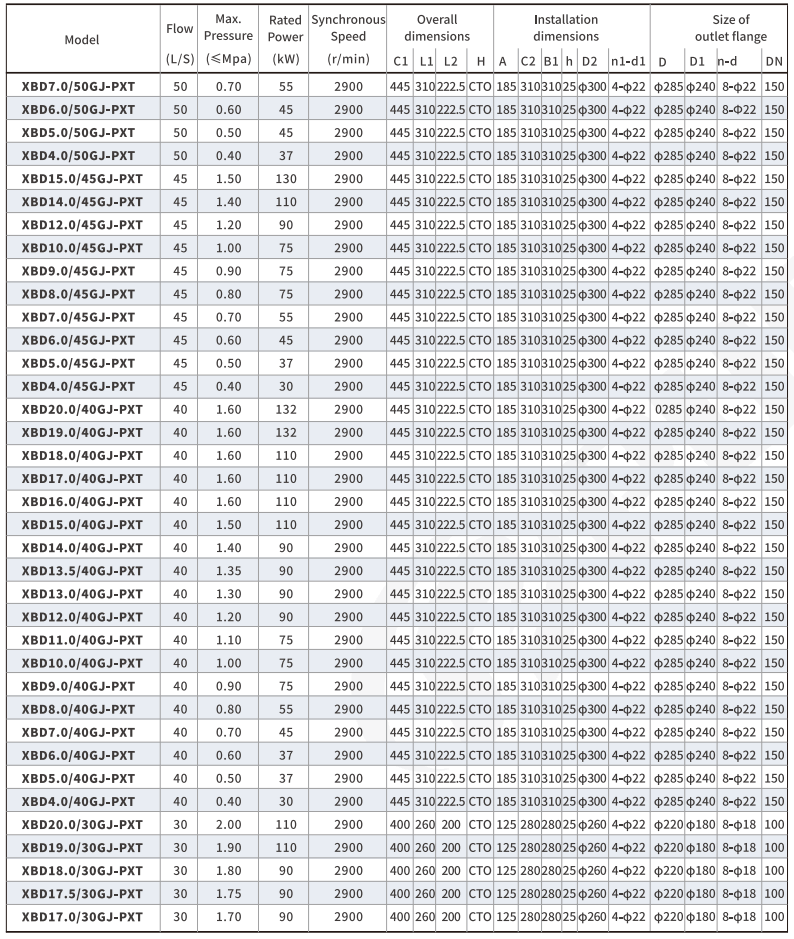

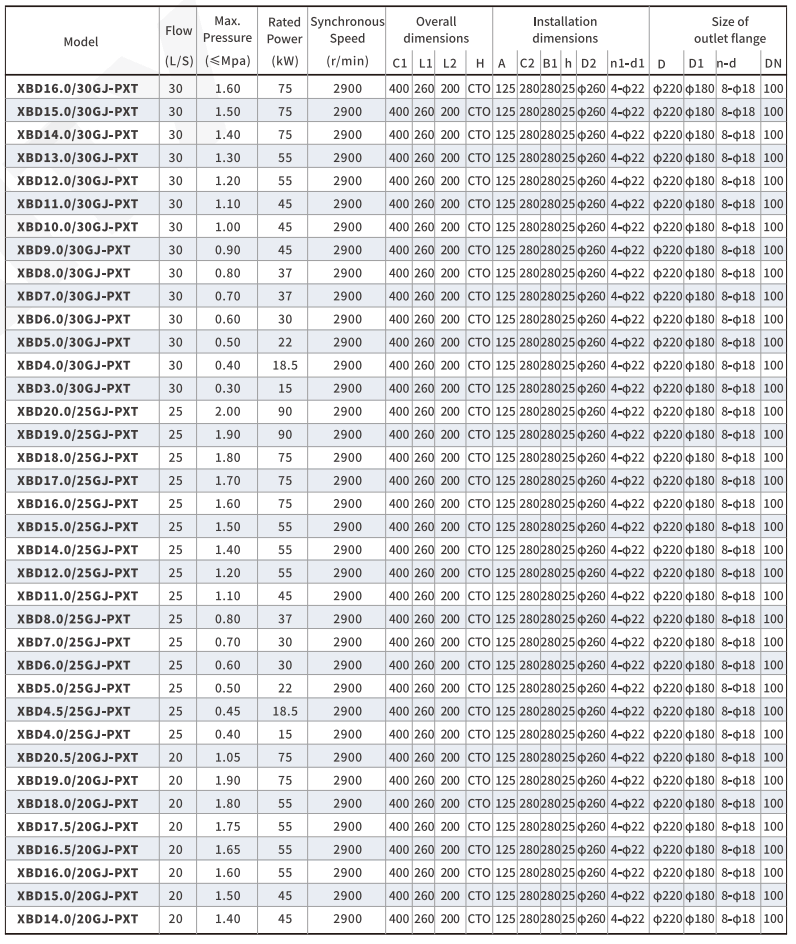

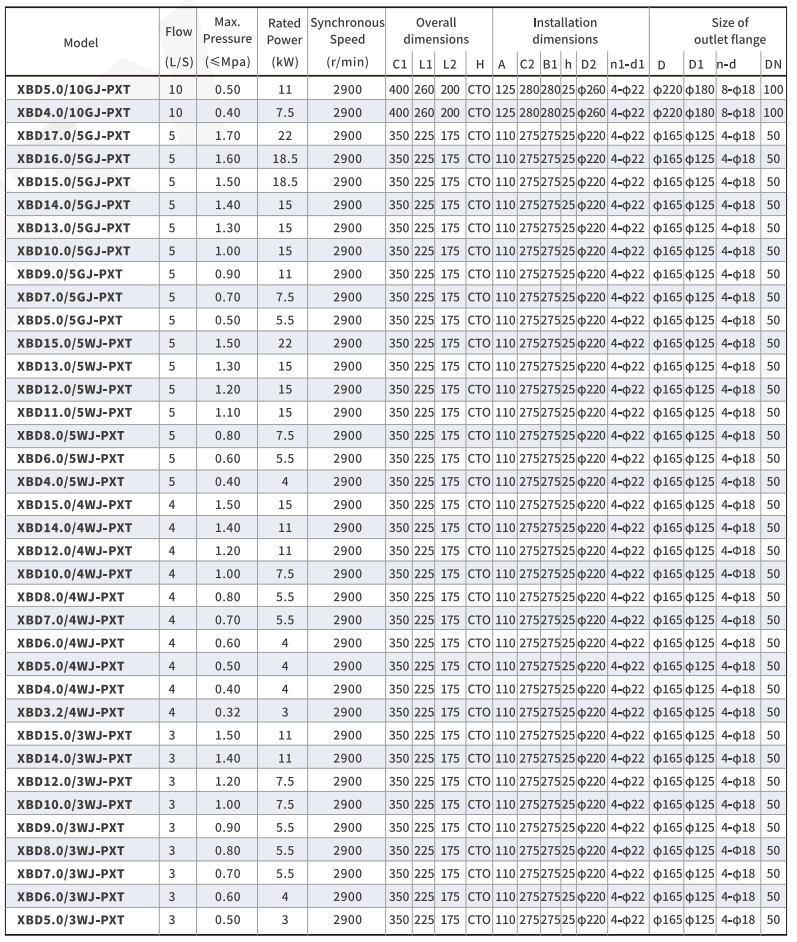

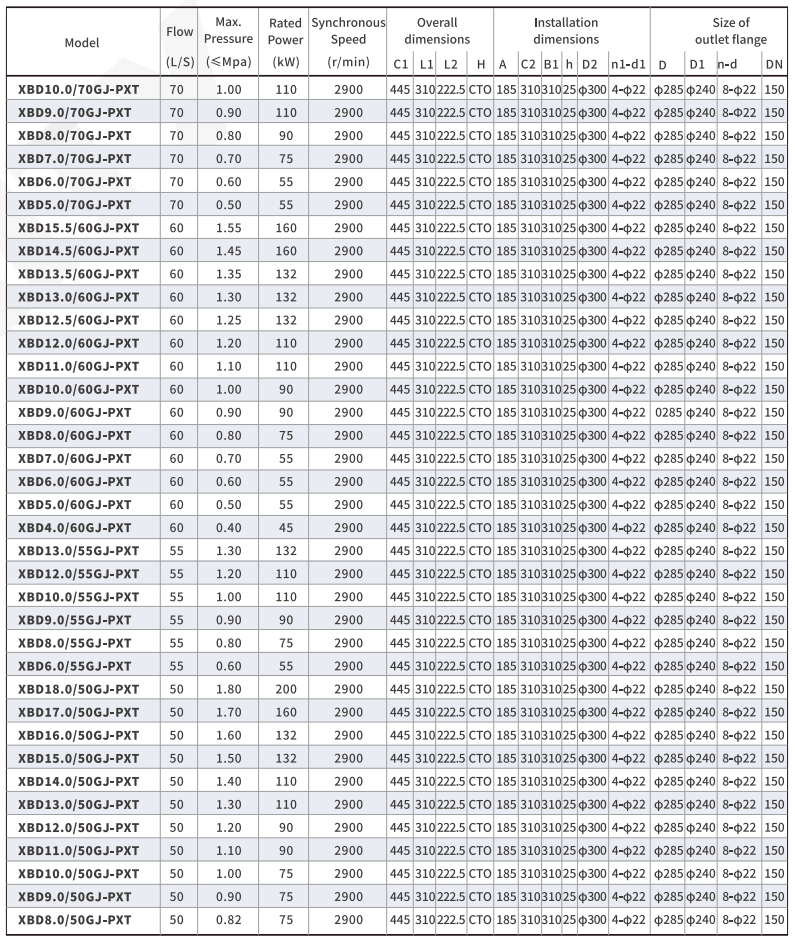

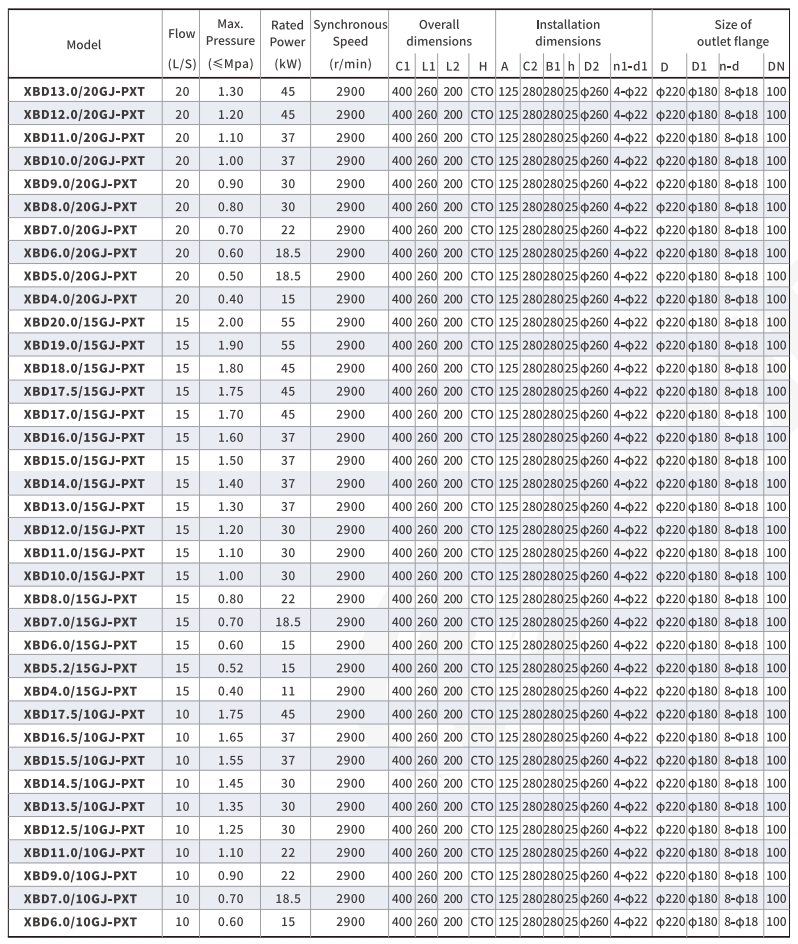

Technical Data

Other Sizes Can Provide On Request.

Please send inquiry to mina@cnpurity.com for prompt reply !
