PEJ Fire Pump System Electric Centrifugal and Stabilized PUMP

Descripción técnica
Diseño original puro
• motores cuadrados y circulares disponibles
Motor de alta eficiencia ye3, clase de protección ip55 F
Carcasa de la bomba con recubrimiento anticorrosivo
Impulsor en tecno - polimer
El eje está hecho de acero inoxidable Aisi 304 o hierro galvanizado
Succión y descarga de hilo de hierro fundido G20
Rodamientos NSK de alta calidad, sellos mecánicos resistentes al desgaste

3D PRODUCT CHAT NOW

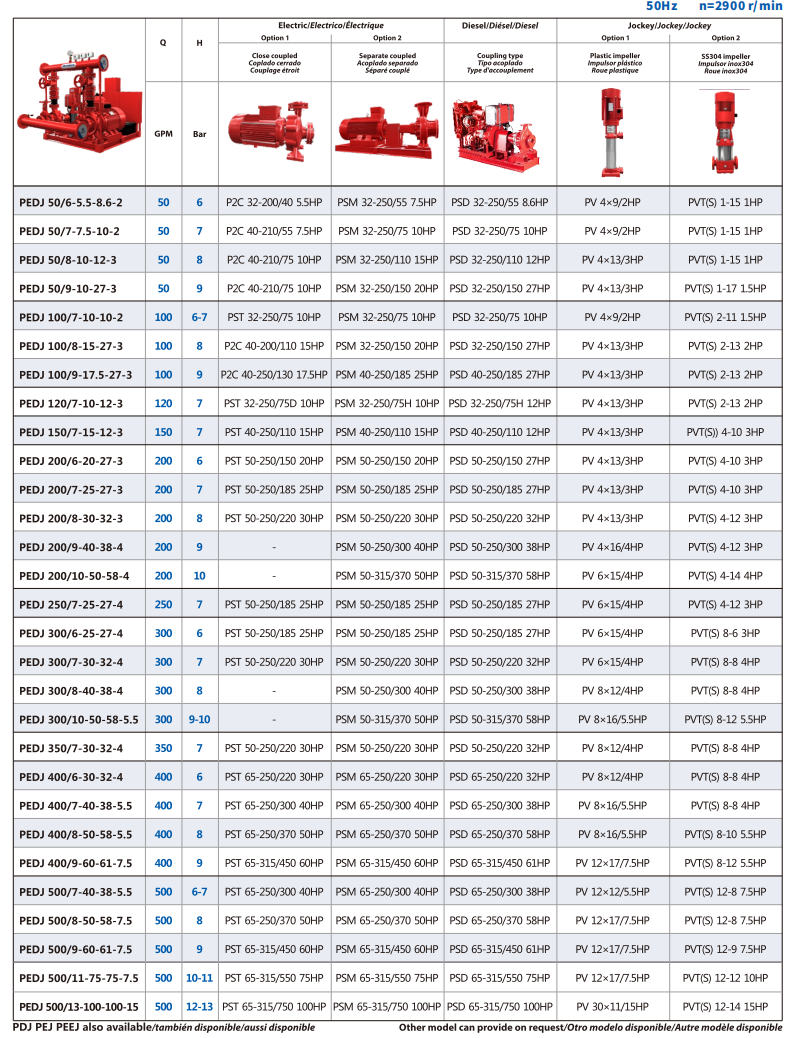

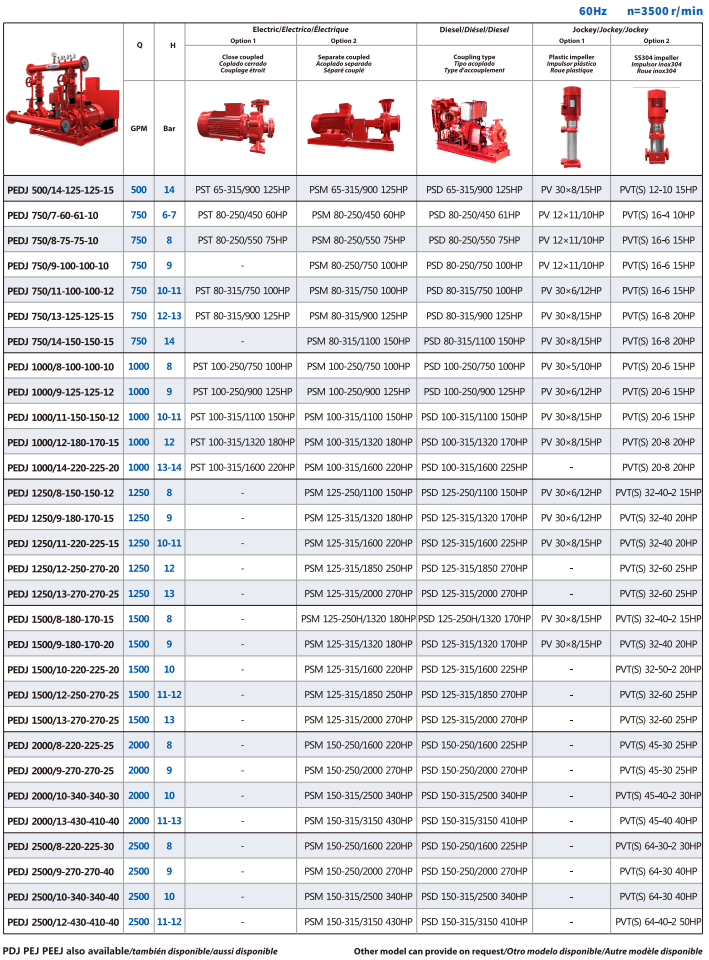

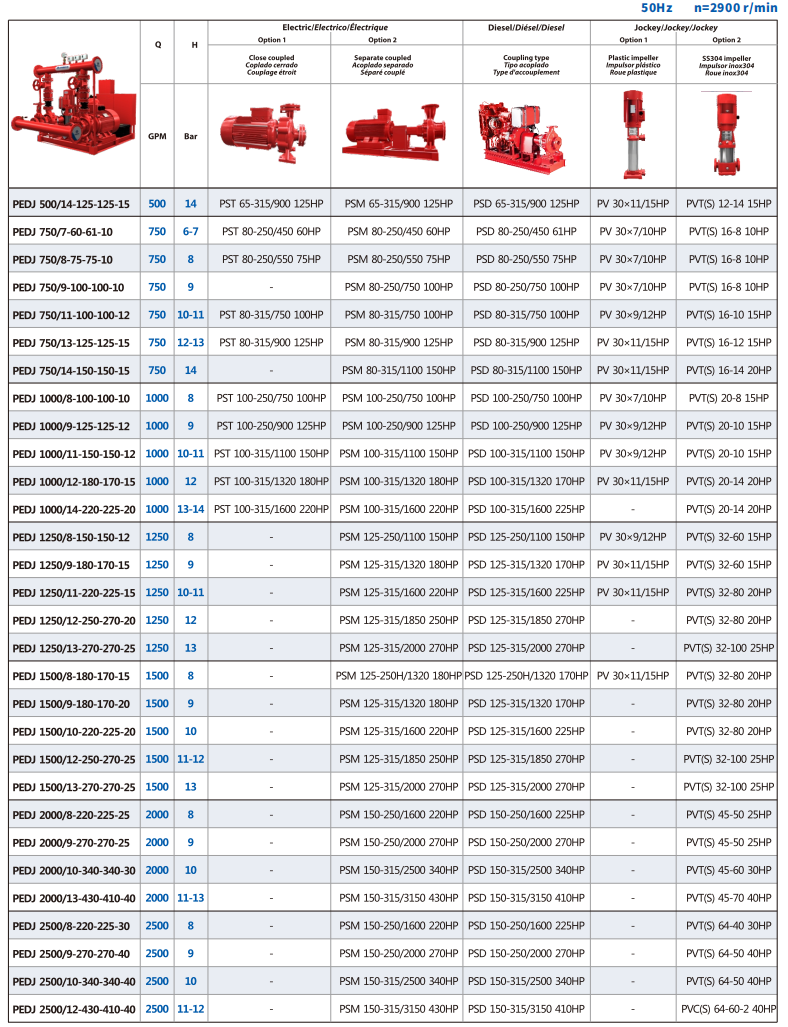

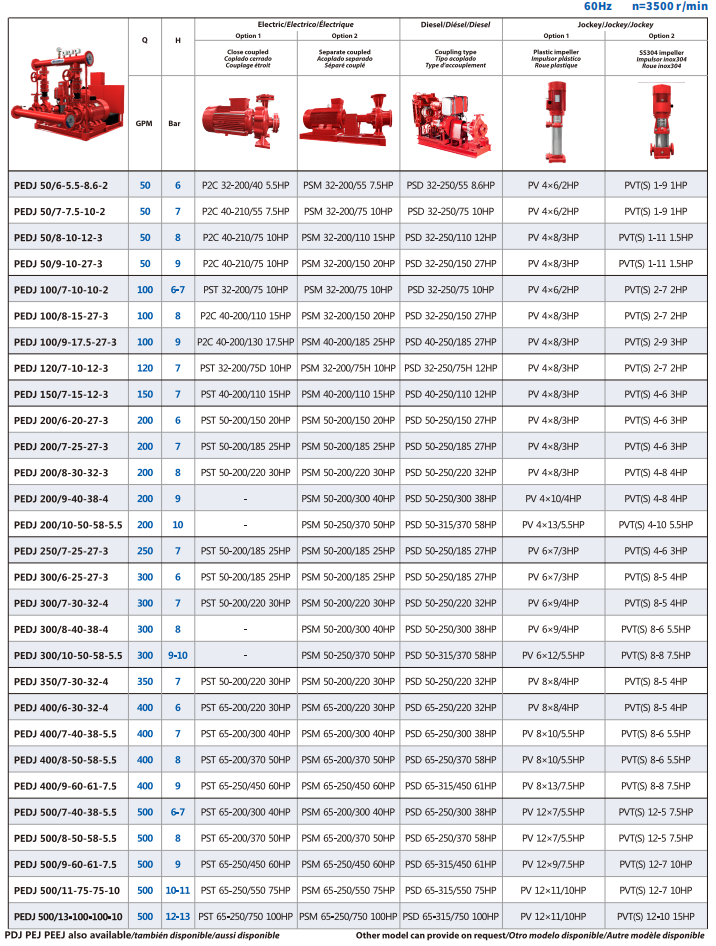

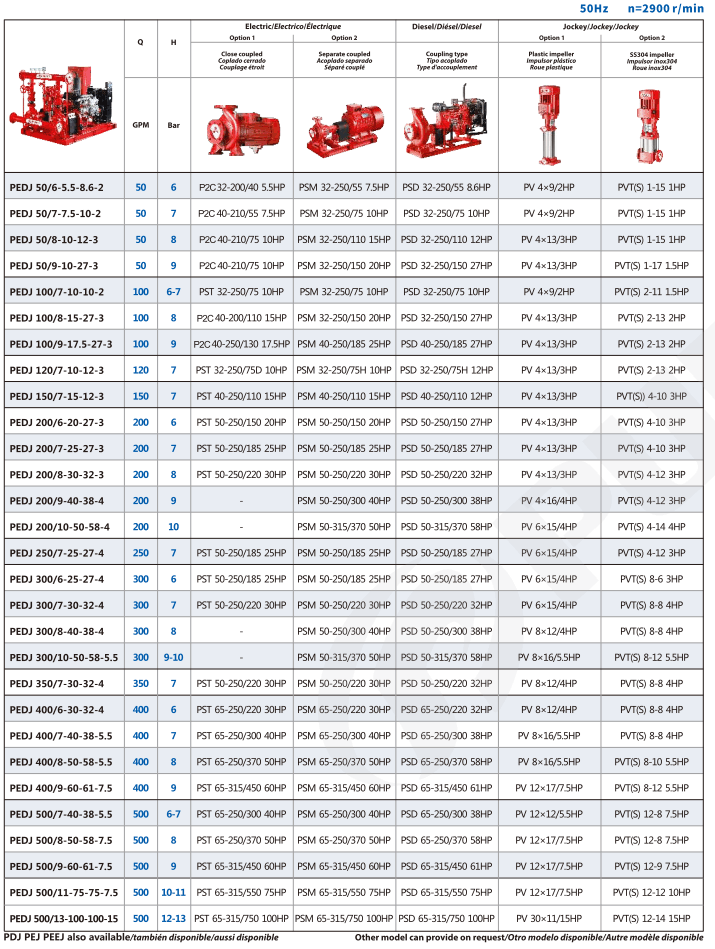

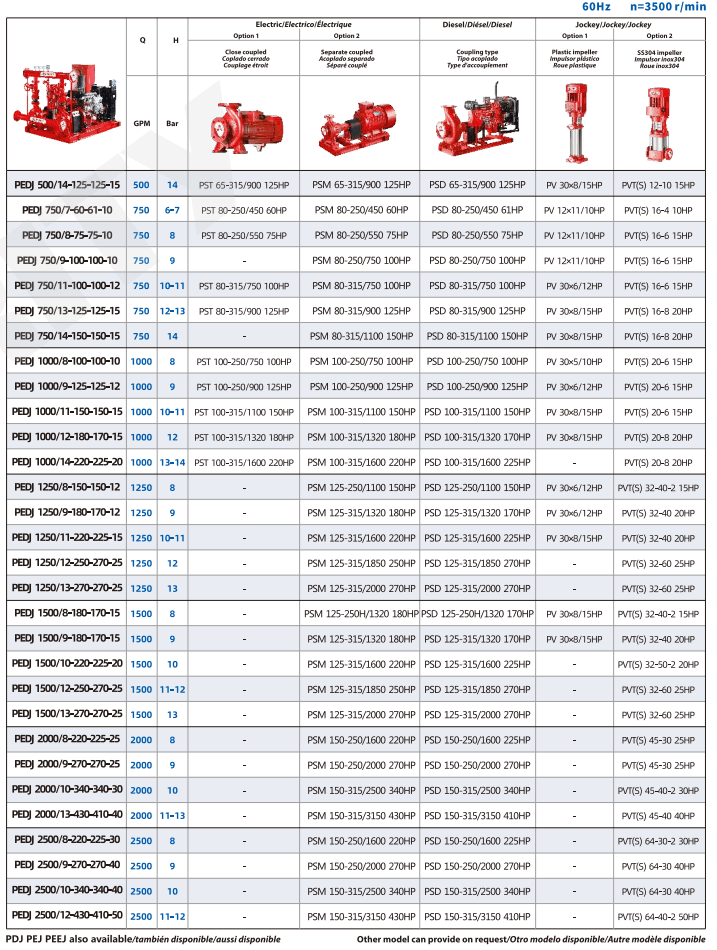

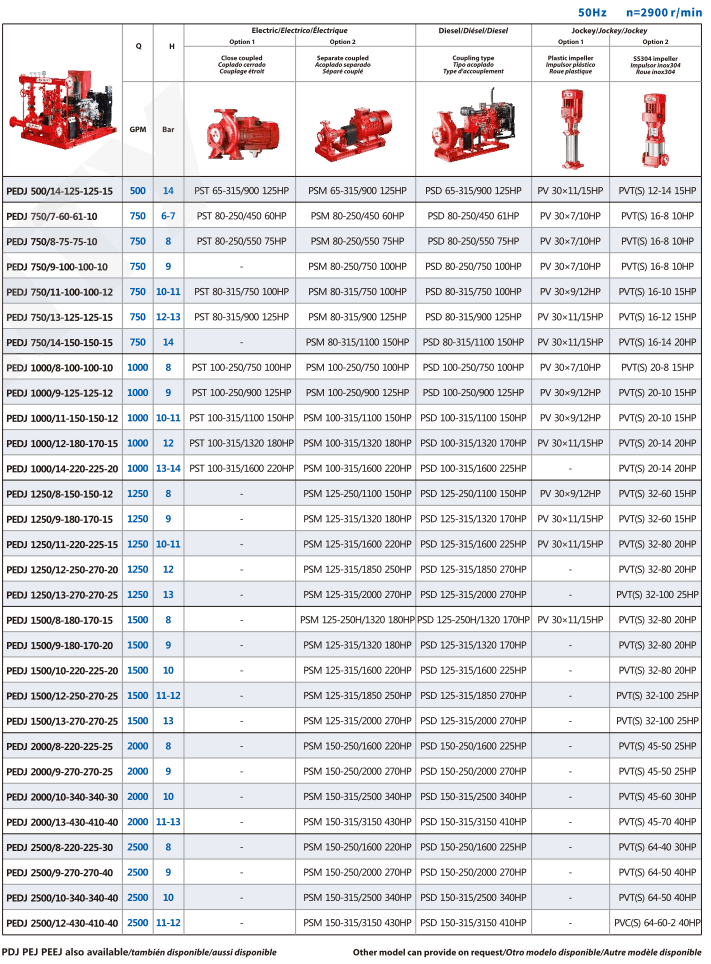

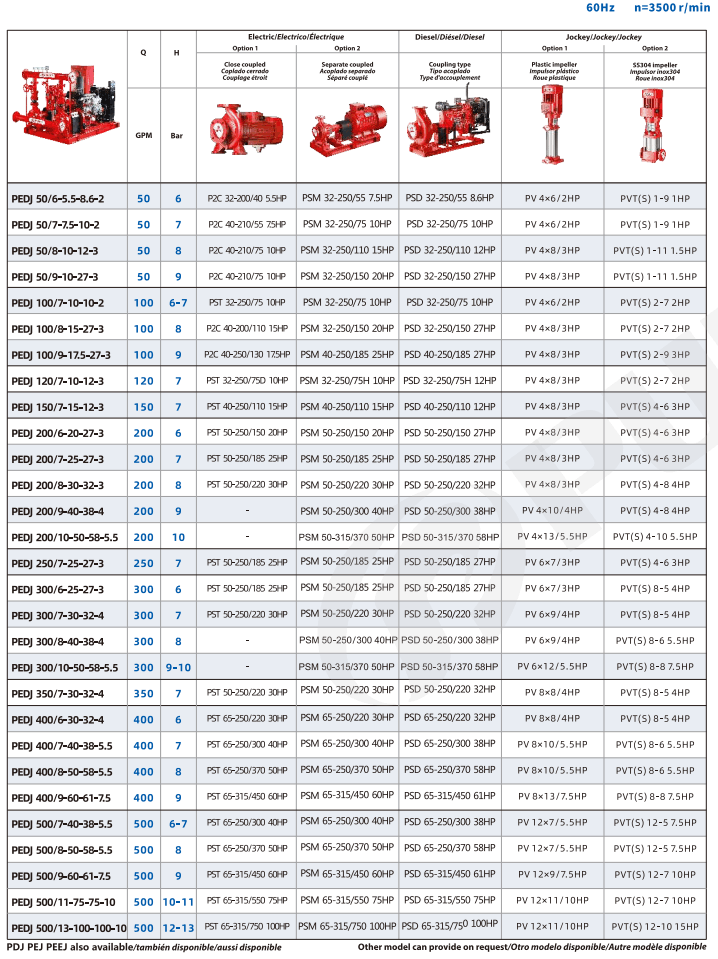

Product Specification (50HZ) 60HZ

Product Description

PEJ Fire Pump System

(End Suction Centrifugal Pump + Multistage Jockey Pump + Control Panel Board)

End Suction Horizontal Centrifugal Fire Pump (PST)

TECHNICAL DESCRIPTION

New EN733 standard centrifugal pump

Original design by PURITY (patented)

Both square motor & round motor available

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Galvanized counter flange with bolts, nuts and gaskets

Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The EN733 centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.

USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1

PATENTS

Registered model PST

Registered Patent Design n 201530478502.0

Vertical Multistage Jockey Fire Pump (PV)

TECHNICAL DESCRIPTION

New vertical multistage centrifugal pump

Original design by PURITY

Both square motor & round motor available

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in techno-polimer

Shaft in stainless steel AISI 304 or galvanized iron

Suction and discharge port in cast iron G20 thread

Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The high efficiency and adaptability of these pumps to even the most

unusual of applications, makes them ideal for use in the domestic,

civil and industrial sectors; in particular for the distribution of water

in combination with pressure sets and for pressure boosting.

USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 25 bar

Continuous service S1

Control Panel Board

PST

TECHICAL DATA/DATOS TECNICOS 50 HZ n=2900 1/min

*MODEL/MODELO***	*Power/Potencia***		us gpm	Q=DELIVERY / *CAUDAL*																			DN
			us gpm	0	26	40	66	79	106	119	159	185	211	238	317	370	396	476	529	608	793	925
			l/min	0	100	150	250	300	400	450	600	700	800	900	1200	1400	1500	1800	2000	2300	3000	3500
	kw	hp	m3/h	0	6	9	15	18	24	27	36	42	48	54	72	84	90	108	120	138	180	210	mm
32-125/07	0.75	1	Head H(m)	17.5	16.7	15	12	9															50x32
32-125/11	1.1	1.5		22	21	19.7	16.5	14.5	9														50x32
32-160/15	1.5	2		25.4	23.7	22.5	18.5	15.8															50x32
32-160/22	2.2	3		31	29.6	28.5	24.5	22	15														50x32
32-160/30	3	4		35	34.3	34	28	25.5	19	15													50x32
32-200/30	3	4		44.2	43	39.8	35.2	32.2	24.6	19.8													50x32
32-200/40	4	5.5		54.5	52	50	45.5	41.9	35	30.3													50x32
32-250/55	5.5	7.5		60	59.5	59	55	51	34.5														50x32
32-250/75	7.5	10		69.5	69	68.5	66	63	53														50x32
32-250/110	11	15		90	89.5	89	82	79	66														50x32
32-250/55D	5.5	7.5		79.5	74.7	71.8	63	56	37.5														50x32
32-250/75D	7.5	10		95	93	91	83	76	57.8														50x32
40-125/11	1.1	1.5		14.7				13.5	11.5	10.1	5.8												65x40
40-125/15	1.5	2		18.1				17	15	13.9	9.6	6											65x40
40-125/22	2.2	3		24.5				23.2	21.5	20.2	16	13	8.3										65x40
40-160/30	3	4		31.8				29.5	27.5	26.3	21.5	17.5											65x40
40-160/40	4	5.5		38				36	34	33	28.5	25	20.1										65x40
40-200/55	5.5	7.5		46				43.8	41.3	40.1	35	30											65x40
40-200/75	7.5	10		57				53.6	51.5	50	45	41	36.5										65x40
40-250/92	9.2	12.5		64				59	56.5	55	49.5	45	39.8										65x40
40-250/110	11	15		72				67.5	66	63.5	57.5	52.2	47										65x40
40-250/150	15	20		84.5				80	77.3	75.2	71	65	61										65x40
50-125/22	2.2	3		17							15.4	14	12.8	11.5	6.5								65x50
50-125/30	3	4		20							18.8	18	17	15.6	11								65x50
50-125/40	4	5.5		24							23.1	23	21.5	20.3	15.8	11.8							65x50
50-160/55	5.5	7.5		32							30.6	30	28	26.6	20.5	14.8							65x50
50-160/75	7.5	10		40							38	37	36	34.4	29	24	21						65x50
50-200/92	9.2	12.5		50.5							46.8	45	43	40.9	32.5	26.7							65x50
50-200/110	11	15		57.5							53.5	52	50	47.5	40	34	29						65x50
50-200/150	15	20		62							58	56.5	54.5	52	44.5	39	35.5						65x50
50-250/150	15	20		68.5							64	63	61.5	59	50	41							65x50
50-250/185	18.5	25		79							75.8	74.8	74	71.5	63.5	55.5	47						65x50
50-250/220	22	30		89.5							86	85.3	84	81.5	73.5	65.5	57						65x50
65-125/40	4	5.5		19									17.3	16.8	14.5	13	11.8						80x65
65-125/55	5.5	7.5		23									21.3	20.9	19	17.5	16.7	13.7					80x65
65-125/75	7.5	10		27									26	25.6	24.5	23	22.5	20	18				80x65
65-160/92	9.2	12.5		33										31.5	30	28	27.1	24	21.5				80x65
65-160/110	11	15		36										34.5	33	31.5	30.8	28	25.5				80x65
65-160/150	15	20		42										41	40	38.5	37.8	35	33	29.5			80x65
65-200/150	15	20		45										45.5	43	41	40.2	36.5	34				80x65
65-200/185	18.5	25		52										52.3	51	49	48.2	44.5	42				80x65
65-200/220	22	30		59										59.5	58	56	55	52	49.5	44.5			80x65
65-250/220	22	30		64.8										64.7	62	60	58.5	53	50				80x65
65-250/300	30	40		80										79.8	77.5	75.5	74.5	70	66	58			80x65
65-250/370	37	50		92										90.5	88.5	87	85	80.5	78	68			80x65
80-125/40	4	5.5		17									16.5	15.9	14.3	13.5	11.6	10	7.5				100x80
80-125/55	5.5	7.5		21									20.5	20	19	18	16.5	15	12.5	9.5			100x80
80-125/75	7.5	10		26									25	25	24.5	23.8	22.5	21.5	19.5	16.5			100x80

TECHICAL DATA/DATOS TECNICOS 50 HZ n=2900 1/min

*MODEL/MODELO***	*Power/Potencia***		us gpm	Q=DELIVERY / CAUDAL																		DN
			us gpm	0	264	396	529	634	793	881	925	969	1057	1233	1322	1586	1762	2203	2643	3524	4405
			l/min	0	1000	1500	2000	2400	3000	3333	3500	3666	4000	4666	5000	6000	6666	8333	10000	13333	16666
	kw	hp	m3/h	0	60	90	120	144	180	200	210	220	240	280	300	360	400	500	600	800	1000	mm
80-160/110	11	15	Head H(m)	27	27	27.3	24.5	21.1	16													100x80
80-160/150	15	20		32.8	32.6	32.5	30.2	27	22.1	18.5	16.7											100x80
80-160/185	18.5	25		39	38.5	38	36.7	33.6	28.8	25.3	23.5											100x80
80-160/220	22	30		44	43.5	43	41.7	38.6	33.8	30.3	28.5											100x80
80-200/220	22	30		48	47.7	47.5	43.5	39.2	32.5	27.2	24.5											100x80
80-200/300	30	40		60	59.7	59.5	57	53.1	47	42.7	40.5											100x80
80-250/370	37	50		71.5	70.9	70.5	65.5	59.3	51	43.2	38.5											100x80
80-250/450	45	60		88	86.7	86	83.6	78.5	70.5	60	51											100x80
80-250/550	55	75		94.5	94.5	94.5	91.8	87	79.5	72.1	68.3											100x80
100-160/150	15	20		35	33.5	32.5	30	27.8	24.5	21.5	20	18.3	15									125x100
100-160/185	18.5	25		38.5	37.5	36.5	34.3	32.2	29	25.7	24	22	18									125x100
100-160/220	22	30		43	41	40	37.6	35.2	31.5	28.5	27	25.3	22									125x100
100-200/220	22	30		38.5	36.7	35.7	33.8	31.7	28.5	26.8	26	25	22.9	16.3	13							125x100
100-200/300	30	40		44.5	42.5	42	40.2	38.8	36.7	34.2	33	31.7	29	21.7	18							125x100
100-200/370	37	50		55	53	51	50.6	49.2	47	45	44	42.8	40.5	32.8	29							125x100
100-250/450	45	60		65	65	64	63	61	58	56	55	53.3	50	39	33.5							125x100
100-250/550	55	75		77	76	75.5	75	73.8	72	71.7	71.5	70.7	69	62.3	59							125x100
100-250/750	75	100		91	91	90.5	89.7	88	85.5	84	83.3	81.5	78	71.7	68.5	48						125x100

TECHNICAL DATA

MODEL	Power		us gpm	Q=DELIVERY																				DN
			us gpm	0	5	11	13	16	19	21	24	26	29	32	37	42	48	53	58	63	69	74	79
			l/min	0	20	40	50	60	70	80	90	100	110	120	140	160	180	200	220	240	260	280	300
	kw	hp	m³/h	0	1.2	2.4	3	3.6	4.2	4.8	5.4	6	6.6	7.2	8.4	9.6	10.8	12	13.2	14.4	15.6	16.8	18	mm
PV4x7/1.5	1.1	1.5	Head H(m)	60.7	56.8	52.1	49	45.9	42.8	38.9	35	30.3	25.7	20.2										25x25
PV4x9/2	1.5	2		78	73	67	63	59	55	50	45	39	33	26										25x25
PV4x13/3	2.2	3		113	105	96.8	91	85.2	79.4	72.2	65	56.3	47.7	37.5										25x25
PV4x16/4	3	4		139	130	119	112	105	97.8	88.9	80	69.3	58.7	46.2										25x25
PV6x5/1.5	1.1	1.5		44.4				135.5	33.3	30.9	28.4	26.1	23.4	20.2	14.3	6.8								32x32
PV6x8/2	1.5	2		71.1				56.7	53.2	49.5	45.5	41.8	37.5	32.4	22.9	10.9								32x32
PV6x11/3	2.2	3		97.7				78	73.2	68	62.5	57.5	51.5	44.5	31.5	15								32x32
PV6x15/4	3	4		133				106	99.8	92.7	85.2	78.4	70.2	60.7	43	20.5								32x32
PV8x4/1.5	1.1	1.5		36.8						30	28.4	27.2	26	24.4	21.2	17.6	13.2	9.2	4.8					40x40
PV8x7/2	1.5	2		64.4						52.5	49.7	47.6	45.5	42.7	37.1	30.8	23.1	16.1	8.4					40x40
PV8x9/3	2.2	3		82.8						67.5	63.9	61.2	58.5	54.9	47.7	39.6	29.7	20.7	10.8					40x40
PV8x12/4	3	4		110						90	85.2	81.6	78	73.2	63.6	52.8	39.6	27.6	14.4					40x40
PV8x16/5.5	4	5.5		147						120	114	109	104	97.6	84.8	70.4	52.8	36.8	19.2					40x40
PV12x3/1.5	1.1	1.5		31								25.4	24.7	24	22.4	20.6	18.4	16.2	13.3	10.9	8.3	5.1	2	50x50
PV12x5/2	1.5	2		51.7								42.4	41.2	40	37.3	34.3	30.7	27	22.2	18.2	13.8	8.5	3.3	50x50
PV12x7/3	2.2	3		72.3								59.3	57.6	56	52.3	48.1	43	37.8	31	25.5	19.4	11.9	4.7	50x50
PV12x9/4	3	4		93								76.2	74.1	72	67.2	61.8	55.2	48.6	39.9	32.8	24.9	15.4	6	50x50
PV12x12/5.5	4	5.5		122								102	98.8	96	89.6	82.4	73.6	64.8	53.2	43.8	33.2	20.5	8	50x50
PV12x17/7.5	5.5	7.5		176								144	140	136	127	117	104	91.8	75.4	62	47	29	11.3	50x50

MODEL	Power		us gpm	Q=DELIVERY									DN
			us gpm	0	26	53	79	106	132	159	185	211
			l/min	0	100	200	300	400	500	600	700	800
	kw	hp	m³/h	0	6	12	18	24	30	36	42	48	mm
PV30x7/10	7.5	10	Head H(m)	104	100	93	83	74	64	49	31	4	50x50 65x65
PV30x9/12	9.2	12.5		133	128	119	108	96	82	63	40	5
PV30x11/15	11	15		163	156	145	132	116	99	77	48	6

PST

No.	Description	Material	No.	Description	Material	No.	Description	Material
1	Pump Case	Cast iron	10	Motor Case	Aluminum	19	Impeller Key	Iron
2	Impeller	SS304/Cast iron	11	Support Foot	Plastic	20	Water Deflector	Rubber
3	Mechanical Seal	SiC/Carbon/SS304	12	Back Cover	Cast iron	21	Connection Bolt	Steel
4	O-ring	Rubber	13	Reinforced Seal	Rubber	22	Impeller Nut	Galvanizated Steel
5	Connection	Cast iron	14	Fan Cover	Aluminum	23	Release Valve	Brass
6	Reinforced Seal	Rubber	15	Fan	Plastic	24	Gasket	Rubber
7	Shaft	SS304/45# Steel	16	Through Bolt	Steel	25	Counter Flange	Galvanizated Cast iron
8	Bearing	Ball Bearing	17	Terminal Box	Aluminum	26	Flange Bolt	Steel
9	Wound Stator/Rotor	Silicon Steel/Copper	18	Terminal Board	Plastic

Spare Parts

Packaging & Shipping

Our Exhibition

Certifications

Product Description

PEJ Fire Pump System

(End Suction Centrifugal Pump + Multistage Jockey Pump + Control Panel Board)

End Suction Horizontal Centrifugal Fire Pump (PST)

TECHNICAL DESCRIPTION

New EN733 standard centrifugal pump

Original design by PURITY (patented)

Both square motor & round motor available

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in stainless steel AISI 304 or cast iron

Shaft in stainless steel AISI 304 or galvanized iron

Galvanized counter flange with bolts, nuts and gaskets

Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The EN733 centrifugal pumps are recommended for use in water supply,

cleaning sets, pressure boosting, firefighting sets, irrigation, industrial

applications, water circulation in climatisation sets, agricultural.

USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 16 bar

Continuous service S1

PATENTS

Registered model PST

Registered Patent Design n 201530478502.0

Vertical Multistage Jockey Fire Pump (PV)

TECHNICAL DESCRIPTION

New vertical multistage centrifugal pump

Original design by PURITY

Both square motor & round motor available

YE3 high efficient motor, with protection IP55 class F

Pump case with anti-corrosive coating

Impeller in techno-polimer

Shaft in stainless steel AISI 304 or galvanized iron

Suction and discharge port in cast iron G20 thread

Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS

Suitable for use with clean water and liquids that are not chemically

aggressive towards the materials from which the pump is made.

The high efficiency and adaptability of these pumps to even the most

unusual of applications, makes them ideal for use in the domestic,

civil and industrial sectors; in particular for the distribution of water

in combination with pressure sets and for pressure boosting.

USING LIMITS

Liquid temperature between -10℃ and +120℃

Ambient temperature up to +50℃

Max. working pressure 25 bar

Continuous service S1

Control Panel Board

PST

TECHNICAL DATA / DATOS TÉCNICOS 60Hz n=3500 1/min

*MODEL/MODELO***	*Power/Potencia***		us gpm	Q=DELIVERY / *CAUDAL*																			DN
			us gpm	0	26	40	66	79	106	119	159	185	211	238	317	370	396	476	529	608	793	925
			l/min	0	100	150	250	300	400	450	600	700	800	900	1200	1400	1500	1800	2000	2300	3000	3500
	kw	hp	m³/h	0	6	9	15	18	24	27	36	42	48	54	72	84	90	108	120	138	180	210	mm
32-125/07	0.75	1	Head H(m)	17.5	16.7	15	12	9															50x32
32-125/11	1.1	1.5		22	21	19.7	16.5	14.5	9														50x32
32-160/15	1.5	2		25.4	23.7	22.5	18.5	15.8															50x32
32-160/22	2.2	3		31	29.6	28.5	24.5	22	15														50x32
32-160/30	3	4		35	34.3	34	28	25.5	19	15													50x32
32-200/30	3	4		44.2	43	39.8	35.2	32.2	24.6	19.8													50x32
32-200/40	4	5.5		54.5	52	50	45.5	41.9	35	30.3													50x32
32-250/55	5.5	7.5		60	59.5	59	55	53	49	46													50x32
32-250/75	7.5	10		75	74.5	74.3	73.5	72.5	68.5	67.3	60												50x32
32-250/110	11	15		90	87.5	85.8	82	79	75	72	65												50x32
32-250/55D	5.5	7.5		79.5	77	74	70	66	54	42													50x32
32-250/75D	7.5	10		95	93	91	87	83	75	70	32												50x32
40-125/11	1.1	1.5		14.7				13.5	11.5	10.1	5.8												65x40
40-125/15	1.5	2		18.1				17	15	13.9	9.6	6											65x40
40-125/22	2.2	3		24.5				23.2	21.5	20.2	16	13	8.3										65x40
40-160/30	3	4		31.8				29.5	27.5	26.3	21.5	17.5											65x40
40-160/40	4	5.5		38				36	34	33	28.5	25	20.1										65x40
40-200/55	5.5	7.5		46				43.8	41.3	40.1	35	30											65x40
40-200/75	7.5	10		57				53.6	51.5	50	45	41	36.5										65x40
40-250/92	9.2	12.5		64				59	56.5	55	49.5	45	39.8										65x40
40-250/110	11	15		78				75	73	72	67	63	56	43									65x40
40-250/150	15	20		88.5				83.5	80.5	79	74	70.5	65	52									65x40
50-125/22	2.2	3		17							15.4	14	12.8	11.5	6.5								65x50
50-125/30	3	4		20							18.8	18	17	15.6	11								65x50
50-125/40	4	5.5		24							23.1	23	21.5	20.3	15.8	11.8							65x50
50-160/55	5.5	7.5		32							30.6	30	28	26.6	20.5	14.8							65x50
50-160/75	7.5	10		40							38	37	36	34.4	29	24	21						65x50
50-200/92	9.2	12.5		50.5							46.8	45	43	40.9	32.5	26.7							65x50
50-200/110	11	15		57.5							53.5	52	50	47.5	40	34	29						65x50
50-200/150	15	20		62							58	56.5	54.5	52	44.5	39	35.5						65x50
50-250/150	15	20		68.5							64	63	61.5	59	50	41							65x50
50-250/185	18.5	25		79							75.8	74.8	74	71.5	63.5	55.5	47						65x50
50-250/220	22	30		89.5							86	85.3	84	81.5	73.5	65.5	57						65x50
65-125/40	4	5.5		19									17.3	16.8	14.5	13	11.8						80x65
65-125/55	5.5	7.5		23									21.3	20.9	19	17.5	16.7	13.7					80x65
65-125/75	7.5	10		27									26	25.6	24.5	23	22.5	20	18				80x65
65-160/92	9.2	12.5		33										31.5	30	28	27.1	24	21.5				80x65
65-160/110	11	15		36										34.5	33	31.5	30.8	28	25.5				80x65
65-160/150	15	20		42										41	40	38.5	37.8	35	33	29.5			80x65
65-200/150	15	20		45										45.5	43	41	40.2	36.5	34				80x65
65-200/185	18.5	25		52										52.3	51	49	48.2	44.5	42				80x65
65-200/220	22	30		59										59.5	58	56	55	52	49.5	44.5			80x65
65-250/220	22	30		64.8										64.7	62	60	58.5	53	50				80x65
65-250/300	30	40		80										79.8	77.5	75.5	74.5	70	66	58			80x65
65-250/370	37	50		92										90.5	88.5	87	85	80.5	78	68			80x65
80-125/40	4	5.5		17									16.5	15.9	14.3	13.5	11.6	10	7.5				100x80
80-125/55	5.5	7.5		21									20.5	20	19	18	16.5	15	12.5	9.5			100x80
80-125/75	7.5	10		26									25	25	24.5	23.8	22.5	21.5	19.5	16.5			100x80

TECHNICAL DATA / DATOS TÉCNICOS 60Hz n=3500 1/min

*MODEL/MODELO***	*Power/Potencia***		us gpm	Q=DELIVERY / CAUDAL																		DN
			us gpm	0	264	396	529	634	793	881	925	969	1057	1233	1322	1586	1762	2203	2643	3524	4405
			l/min	0	1000	1500	2000	2400	3000	3333	3500	3666	4000	4666	5000	6000	6666	8333	10000	13333	16666
	kw	hp	m³/h	0	60	90	120	144	180	200	210	220	240	280	300	360	400	500	600	800	1000	mm
80-160/110	11	15	Head H(m)	27	27	27.3	24.5	21.1	16													100x80
80-160/150	15	20		32.8	32.6	32.5	30.2	27	22.1	18.5	16.7											100x80
80-160/185	18.5	25		39	38.5	38	36.7	33.6	28.8	25.3	23.5											100x80
80-160/220	22	30		44	43.5	43	41.7	38.6	33.8	30.3	28.5											100x80
80-200/220	22	30		48	47.7	47.5	43.5	39.2	32.5	27.2	24.5											100x80
80-200/300	30	40		60	59.7	59.5	57	53.1	47	42.7	40.5											100x80
80-250/370	37	50		71.5	70.9	70.5	65.5	59.3	51	43.2	38.5											100x80
80-250/450	45	60		88	86.7	86	83.6	78.5	70.5	60	51											100x80
80-250/550	55	75		94.5	94.5	94.5	91.8	87	79.5	72.1	68.3											100x80
100-160/150	15	20		35	33.5	32.5	30	27.8	24.5	21.5	20	18.3	15									125x100
100-160/185	18.5	25		38.5	37.5	36.5	34.3	32.2	29	25.7	24	22	18									125x100
100-160/220	22	30		43	41	40	37.6	35.2	31.5	28.5	27	25.3	22									125x100
100-200/220	22	30		38.5	36.7	35.7	33.8	31.7	28.5	26.8	26	25	22.9	16.3	13							125x100
100-200/300	30	40		44.5	42.5	42	40.2	38.8	36.7	34.2	33	31.7	29	21.7	18							125x100
100-200/370	37	50		55	53	51	50.6	49.2	47	45	44	42.8	40.5	32.8	29							125x100
100-250/450	45	60		65	65	64	63	61	58	56	55	53.3	50	39	33.5							125x100
100-250/550	55	75		77	76	75.5	75	73.8	72	71.7	71.5	70.7	69	62.3	59							125x100
100-250/750	75	100		91	91	90.5	89.7	88	85.5	84	83.3	81.5	78	71.7	68.5	48						125x100

TECHNICAL DATA / DATOS TÉCNICOS 60Hz n=3450 1/min

MODEL	Power		us gpm	Q=DELIVERY																				DN
			us gpm	0	5	11	13	16	19	21	24	26	29	32	37	42	48	53	58	63	69	74	79
			l/min	0	20	40	50	60	70	80	90	100	110	120	140	160	180	200	220	240	260	280	300
	kw	hp	m³/h	0	1.2	2.4	3	3.6	4.2	4.8	5.4	6	6.6	7.2	8.4	9.6	10.8	12	13.2	14.4	15.6	16.8	18	mm
PV4x4/1.5	1.1	1.5	Head H(m)	52	49	46	44	41	39	37	33	30	27	23										25x25 32x32
PV4x6/2	1.5	2		77	74	69	66	63	58	55	50	45	40	34
PV4x8/3	2.2	3		104	99	92	88	84	78	73	66	60	53	45
PV4x10/4	3	4		129	124	116	110	104	97	91	83	75	66	57
PV4x5/1.5	4	5.5		168	161	150	143	136	126	119	108	97	86	74
PV4x8/2	5.5	7.5		206	198	185	177	167	156	146	133	119	106	91
PV6x3/1.5	1.1	1.5		40				36	35	33	31	30	28	26	22	17
PV6x5/2	1.5	2		66				60	58	55	52	50	47	43	36	28
PV6x7/3	2.2	3		92				85	81	78	73	70	66	61	51	40
PV6x9/4	3	4		119				109	104	100	94	90	84	78	65	51
PV6x12/5.5	4	5.5		159				145	139	133	125	120	113	104	87	68
PV6x16/7.5	5.5	7.5		197				180	173	165	156	150	140	130	108	85
PV8x4/2	1.5	2		53						44	42	41	39	37	33	29	23	17	12					40x40 50x50
PV8x6/3	2.2	3		79						66	64	61	59	56	50	44	35	26	18
PV8x8/4	3	4		105						88	85	82	78	74	66	58	46	34	24
PV8x10/5.5	4	5.5		132						110	106	102	98	93	83	73	58	43	30
PV8x13/7.5	5.5	7.5		171						143	138	133	127	121	108	95	75	56	39
PV8x17/10	7.5	10		224						187	180	173	167	158	141	124	99	73	51
PV12x3/2	1.5	2		44								43	42	41	40	38	36	33	30	27	24	20	17
PV12x4/3	2.2	3		59								58	57	55	53	50	48	44	40	36	32	27	23
PV12x5/4	3	4		73								72	71	69	66	63	60	55	50	45	40	34	29
PV12x7/5.5	4	5.5		102								101	99	97	92	88	84	77	70	63	56	48	40
PV12x9/7.5	5.5	7.5		132								130	127	124	119	113	108	99	90	81	71	61	51
PV12x11/10	7.5	10		161								159	155	152	145	138	131	121	110	99	87	75	63
PV12x15/15	11	15		220								217	212	207	198	189	179	165	150	136	119	102	86

MODEL	Power		us gpm	Q=DELIVERY									DN
			us gpm	0	26	53	79	106	132	159	185	211
			l/min	0	100	200	300	400	500	600	700	800
	kw	hp	m³/h	0	6	12	18	24	30	36	42	48	mm
PV30x5/10	7.5	10	Head H(m)	105	100	93	86	78	67	54	36	4	50x50 65x65 80x80
PV30x6/12	9.2	12.5		126	120	112	103	94	80	65	44	5
PV30x8/15	11	15		168	158	149	138	124	106	86	58	6

PST

No.	Description	Material	No.	Description	Material	No.	Description	Material
1	Pump Case	Cast iron	10	Motor Case	Aluminum	19	Impeller Key	Iron
2	Impeller	SS304/Cast iron	11	Support Foot	Plastic	20	Water Deflector	Rubber
3	Mechanical Seal	SiC/Carbon/SS304	12	Back Cover	Cast iron	21	Connection Bolt	Steel
4	O-ring	Rubber	13	Reinforced Seal	Rubber	22	Impeller Nut	Galvanizated Steel
5	Connection	Cast iron	14	Fan Cover	Aluminum	23	Release Valve	Brass
6	Reinforced Seal	Rubber	15	Fan	Plastic	24	Gasket	Rubber
7	Shaft	SS304/45# Steel	16	Through Bolt	Steel	25	Counter Flange	Galvanizated Cast iron
8	Bearing	Ball Bearing	17	Terminal Box	Aluminum	26	Flange Bolt	Steel
9	Wound Stator/Rotor	Silicon Steel/Copper	18	Terminal Board	Plastic

Spare Parts

Packaging & Shipping

Our Exhibition

Certifications

Leave Your Message

Política de privacidad
