P2C

P2C

Descripción técnica
Nueva bomba centrífuga de doble hoja
Diseño original puro
• motores cuadrados y circulares disponibles
Motor de alta eficiencia ye3, clase de protección ip55 F
Carcasa de la bomba con recubrimiento anticorrosivo
Impulsor doble de latón
El eje está hecho de acero inoxidable Aisi 304 o hierro galvanizado
• succión y descarga en hilos G20
Rodamientos NSK de alta calidad, sellos mecánicos resistentes al desgaste
3D PRODUCT CHAT NOW


NEW/NUEVO


TECHNICAL DESCRIPTION
· New double impeller centrifugal pump
· Original design by PURITY
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Double impeller in brass
· Shaft in stainless steel AISI 304 or galvanized iron
· Suction and discharge port in G20 thread
· Quality NSK bearing, wear resistance mechanical seal

USING LIMITS
· Liquid temperature between -10℃ and +120℃
· Ambient temperature up to +50℃
· Max. working pressure 16 bar
· Continuous service S1

APPLICATIONS
· Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
· The high efficiency and adaptability of these pumps to even the most unusual of applications, makes them ideal for use in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with pressure sets, for pressure boosting and in fire-fighting sets.


NEW/NUEVO

TECHNICAL DESCRIPTION
· New double impeller centrifugal pump
· Original design by PURITY
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Double impeller in brass
· Shaft in stainless steel AISI 304 or galvanized iron
· Suction and discharge port in G20 thread
· Quality NSK bearing, wear resistance mechanical seal


USING LIMITS

· Liquid temperature between -10℃ and +120℃
· Ambient temperature up to +50℃
· Max. working pressure 16 bar
· Continuous service S1


APPLICATIONS
· Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made.
· The high efficiency and adaptability of these pumps to even the most unusual of applications, makes them ideal for use in the domestic, civil and industrial sectors; in particular for the distribution of water in combination with pressure sets, for pressure boosting and in fire-fighting sets.

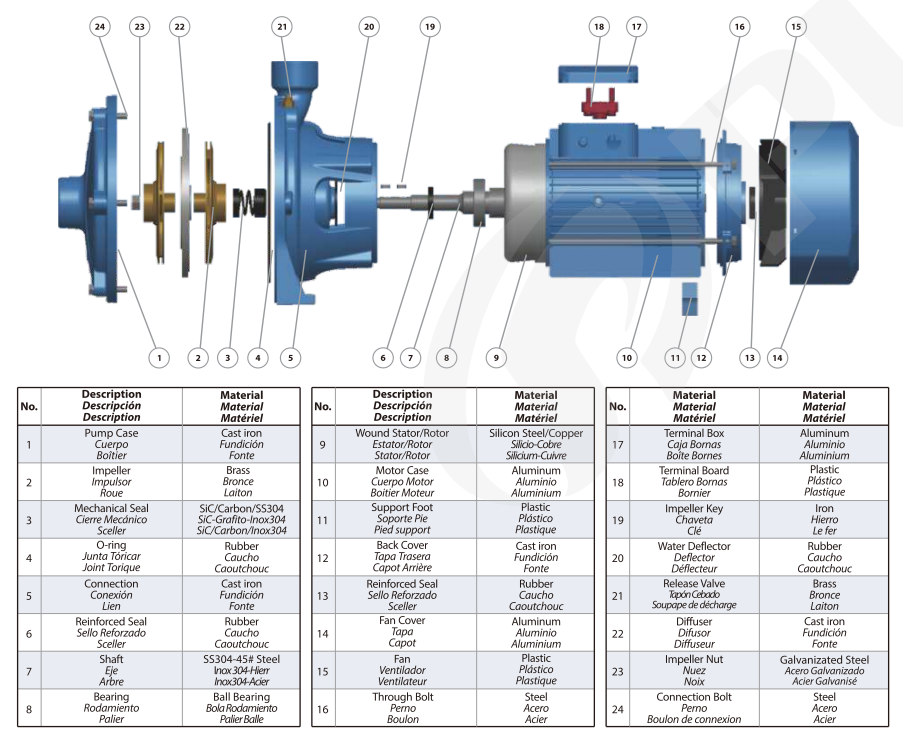

No. Description Material No. Description Material No. Description Material
Descripción Material Descripción Material Descripción Material
1 Pump Case Cast iron 9 Wound Stator/Rotor Silicon Steel/Copper 17 Terminal Box Aluminum
Cuerpo de Bomba Fundición Estator / Rotor Acero al Silicio/Cobre Caja de Bornes Aluminio
2 Impeller Brass 10 Motor Case Aluminum 18 Terminal Board Plastic
Impulsor Bronce Cuerpo de Motor Aluminio Tablero de Bornes Plástico
3 Mechanical Seal SiC/Carbon/SS304 11 Support Foot Plastic 19 Impeller Key Iron
Cierre Mecánico SiC-Grafito-Inox304 Soporte Pie Plástico Chaveta Impulsor Hierro
4 O-ring Rubber 12 Back Cover Cast iron 20 Water Deflector Rubber
Junta Tórica Caucho Tapa Trasera Fundición Deflector Caucho
5 Connection Cast iron 13 Reinforced Seal Rubber 21 Release Valve Brass
Conexión Fundición Sello Reforzado Caucho Tapón Cebado Bronce
6 Reinforced Seal Rubber 14 Fan Cover Aluminum 22 Diffuser Cast iron
Sello Reforzado Caucho Tapa Ventilador Aluminio Difusor Fundición
7 Shaft SS304/45# Steel 15 Fan Plastic 23 Impeller Nut Galvanizated Steel
Eje Inox 304/45# Hierro Ventilador Plástico Tuerca de Impulsor Acero Galvanizado
8 Bearing Ball Bearing 16 Through Bolt Steel 24 Connection Bolt Steel
Rodamiento Bola Rodamiento Perno Acero Perno Acero
