Descripción técnica
Nueva bomba centrífuga
Diseño original de pureza (patente)
• motores cuadrados y circulares disponibles
Motor de alta eficiencia ye3, clase de protección ip55 F
Carcasa de la bomba con recubrimiento anticorrosivo
Impulsor de acero inoxidable Aisi 304 o hierro fundido
El eje está hecho de acero inoxidable Aisi 304 o hierro galvanizado
Brida galvanizada inversa con pernos, tuercas y arandelas
Rodamientos NSK de alta calidad, sellos mecánicos resistentes al desgaste

3D PRODUCT CHAT NOW

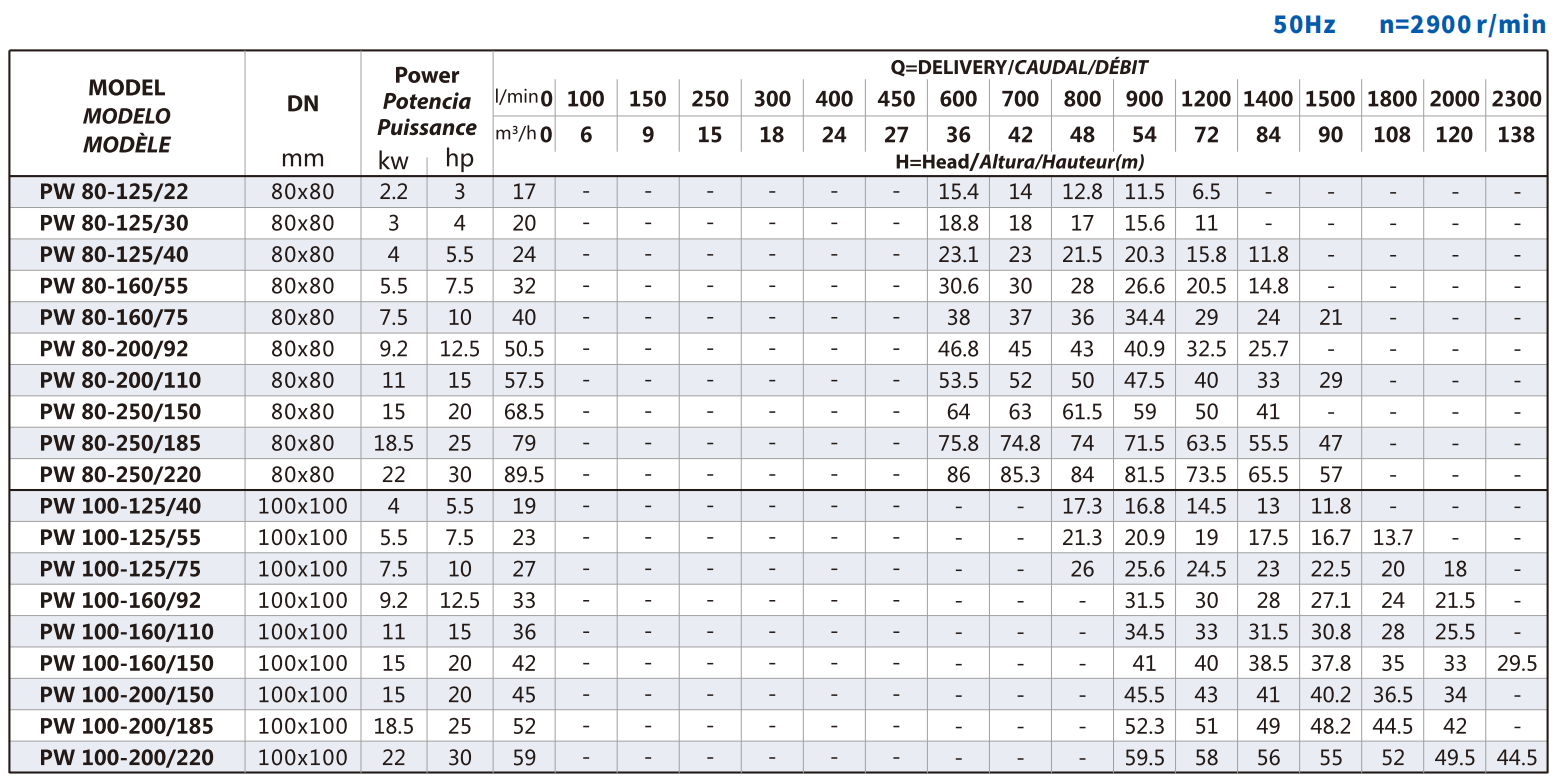

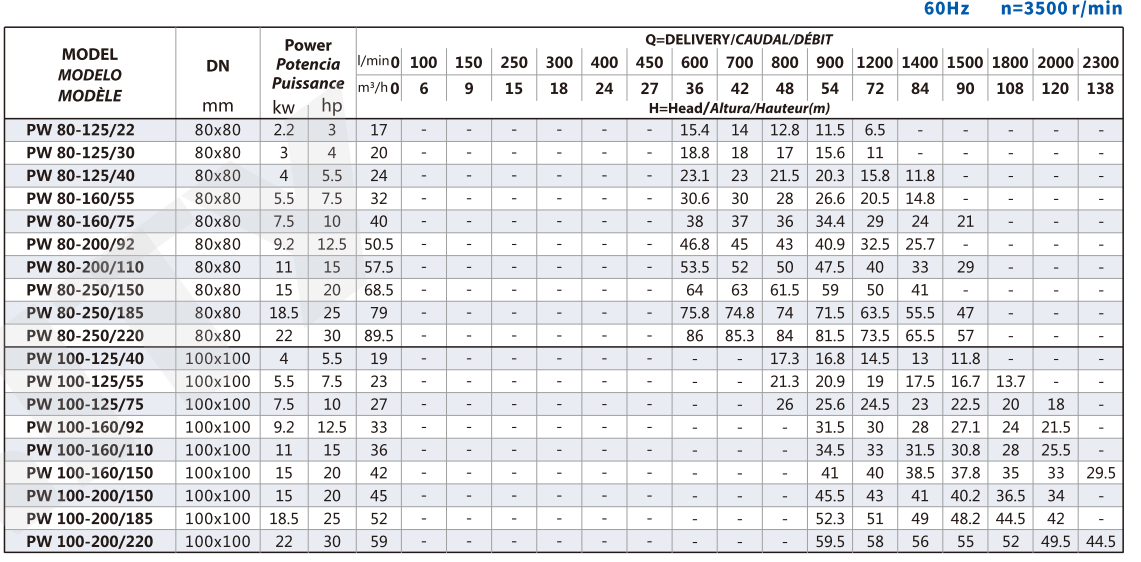

Product Specification (50HZ) 60HZ

NEW/NUEVO

TECHNICAL DESCRIPTION
· New design centrifugal pump
· Original design by PURITY (patented)
· Both square motor & round motor available
· YE3 high efficient motor, with protection IP55 class F
· Pump case with anti-corrosive coating
· Impeller in stainless steel AISI 304 or cast iron
· Shaft in stainless steel AISI 304 or galvanized iron
· Galvanized counter flange with bolts, nuts and gaskets
· Quality NSK bearing, wear resistance mechanical seal

APPLICATIONS
· Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. The centrifugal pumps are recommended for use in water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets, agricultural.

USING LIMITS
· Liquid temperature between -10℃ and +120℃
· Ambient temperature up to +50℃
· Max. working pressure 16 bar
· Continuous service S1

PATENTS
· Registered model PW
· Registered Patent Design no 201530478502.0
